    Automatic Coating Fully Automatic Edge Sealing Shrink Packaging Machine

    GPL-5560CI+GPS-5030LW Fully Automatic Edge Sealing Shrink Packaging Machine

    1.Introduction

    The fully automatic edge sealing shrink packaging machine is a sealing and cutting packaging machine developed and produced for product packaging of various specifications that automatically seals, cuts and shrinks the film. The whole machine is equipped with a PLC program system and uses photoelectricity to automatically detect the product. The product automatically adjusts the feeding length, automatically seals, cuts and shrinks the product, and the detection switch controls the motor to automatically roll up the waste film.

    This achieves the characteristics of unmanned automatic coating. The machine has high working efficiency and is suitable for color boxes, medicine, daily chemicals, food and other industries for different product sizes.

    Automatic Coating Fully Automatic Edge Sealing Shrink Packaging Machine


    2.Technical Parameters


    Model


    GPL-5560CI

    GPS-5030LW
    Available MembranesPOF,PEPOF
    Packaging Speed3~35pcs/min20~80pcs/min
    Product Packaging Size

    W+H≤550, H<230,

    L≥110mm

    /
    Knife Size, Oven Cavity SizeCross blade: 610mmLength: 1500mm Height: 500mm Height: 300mm
    Maximum Temperature280°C200°C
    Single/3 Phase, Voltage, FrequencyThree-phase 220V/380V 50/60HZThree-phase 220V/380V 50-60Hz
    Power3KW16KW
    Maximum Current6.5A25A
    Air Pressure0.6MPa~0.85MPa
    Countertop Height850+30mm850+30mm
    Equipment SizeLength: 1950mm Width: 1085mm Height: 1630mmLength: 1850mm Width: 1095mm Height: 1325mm
    Equipment Weight550kg650kg

    3. Electrical Configuration

    S/NNameBrand
    1MotorTaibang, Tianyang
    2PLCSimens
    3ThermostatOmron
    4Time RelayLzumi
    5Photoelectric SwitchBonner
    6Pneumatic ComponentsAirtac

    4. Equipment Advantages

    4.1 Smart touch display

    Using the color touch screen control panel, setting and adjusting parameters is quick and easy, and it only takes a few minutes to learn and use.

    Automatic Coating Fully Automatic Edge Sealing Shrink Packaging Machine

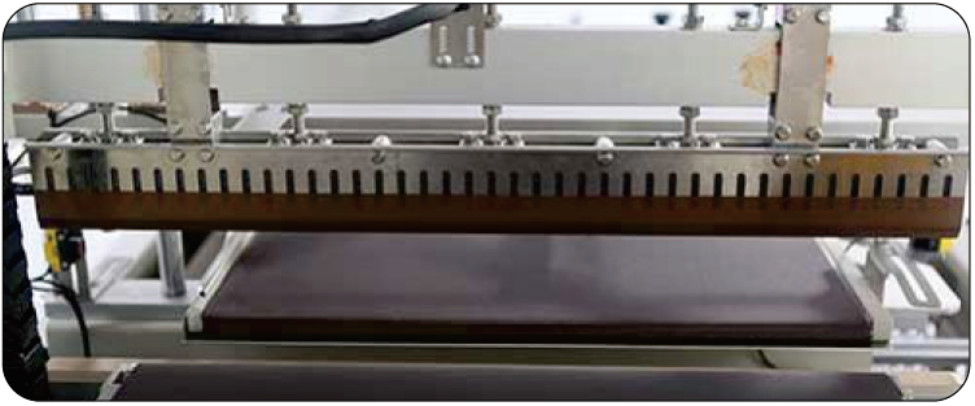

    4.2 Constant temperature sealing and cutting knife

    The sealing knife is coated with high-temperature-resistant material. The knife does not stick to the film or break, and the sealing line is thin and firm.

    Automatic Coating Fully Automatic Edge Sealing Shrink Packaging Machine

    4.3 Visual window shrinking machine

    With the visual window shrinking, the shrinking effect is clear at a glance, making it convenient for users to watch.

    Automatic Coating Fully Automatic Edge Sealing Shrink Packaging Machine

    4.4 Automatic sensing electric eye

    The electric eye senses the items and automatically identifies the products for sealing, cutting and shrink packaging.

    Automatic Coating Fully Automatic Edge Sealing Shrink Packaging Machine

    4.5 Adjust the handle

    The width and height are adjustable and suitable for products of various specifications.

    Automatic Coating Fully Automatic Edge Sealing Shrink Packaging Machine

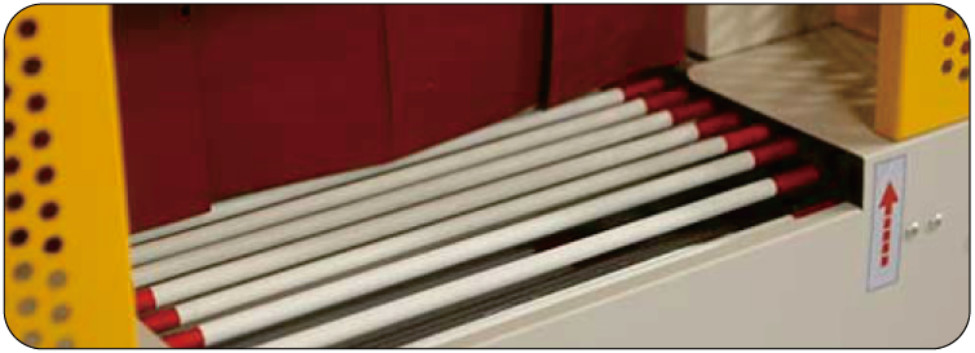

    4.6 High temperature resistant silicone tube

    The furnace cavity is equipped with multiple high-temperature resistant silicone tubes, which are heated at a constant temperature and have a long service life.

    Automatic Coating Fully Automatic Edge Sealing Shrink Packaging Machine

    4.7 Simple operation panel

    Simple and easy to see, easy for the operator to use and adjust.

    Automatic Coating Fully Automatic Edge Sealing Shrink Packaging Machine
