    Rotary Follow Up Filling Structure Fully Automatic Rotary Bottled Powder Packaging Machine

    Ask Lasest Price
    Brand Name : JWIM
    Model Number : CFH-G2
    Certification : CE,ISO
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 1 set per month
    Delivery Time : 15-90 work days
    • Product Details
    • Company Profile

    Rotary Follow Up Filling Structure Fully Automatic Rotary Bottled Powder Packaging Machine

    CFH-G2 Fully Automatic Rotary Bottled Powder Packaging Machine

    1. Introduction

    CFH-G2 fully automatic rotary bottled powder packaging machine adopts a rotary follow-up filling structure and has high production capacity. The whole machine is made of SUS304 stainless steel, which has excellent anti-corrosion properties. The filling part is controlled by servo motor with high precision. The filling process is carried out under the control of PLC program, and all operations are completed on the touch screen.

    Rotary Follow Up Filling Structure Fully Automatic Rotary Bottled Powder Packaging Machine

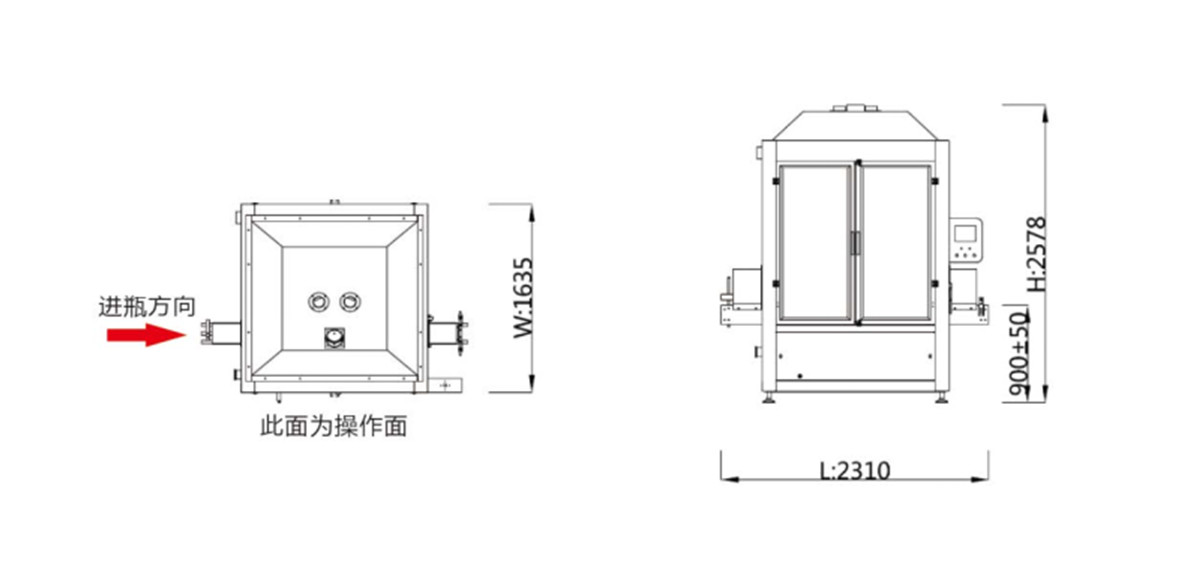

    2. Equipment dimension


    Rotary Follow Up Filling Structure Fully Automatic Rotary Bottled Powder Packaging Machine

    3. Technical Parameters
    1filling speed≤1500 bottles/hour (take 500g as an example)
    2Applicable bottle type

    Round bottle: diameter φ40-95mm, bottle height 80-230mm

    *Different bottle diameters require different molds

    3Measuring accuracy±1%*Measuring accuracy varies depending on material characteristics, filling volume and feeding device
    4Power/powerThree-phase AC380V 50Hz/2KW
    5Air pressure0.6-0.8MPa
    6Dimensions2310×1635×2578mm(L×W×H)
    7weightAbout 800Kg

    4.Electrical configuration


    SNNameBrand
    1PLCSchneider
    2TouchscreenSchneider
    3Frequency converterSchneider
    4Counting photoelectricSICK
    5Switching power supplySchneider
    6Pressure SwitchSMC
    7The electromagnetic valveFTEC/AirTAC

    5.Equipment advantages

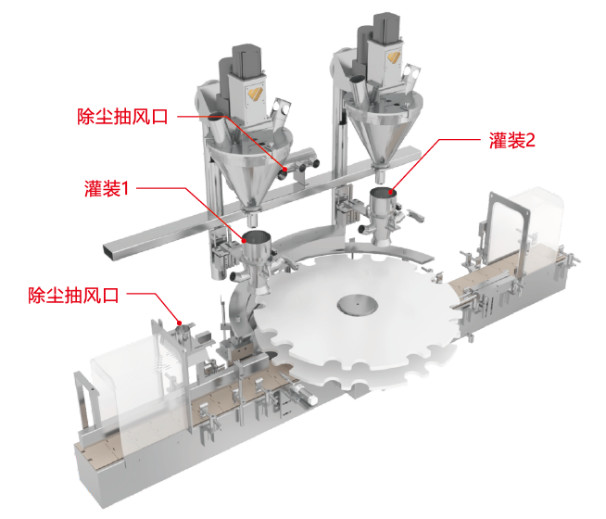

    5.1 Adopt intermittent filling structure:Filling 1 - dust removal - filling 2 - dust removal 2; fast production capacity, stable operation, and can effectively reduce dust in the filling area

    Rotary Follow Up Filling Structure Fully Automatic Rotary Bottled Powder Packaging Machine


    5.2 The excluding frame part of this machine is sealed with stainless steel frame and glass. The supporting blanking and dust removal pipe can be connected with the dust removal pipe to suck away the dust during blanking to reduce dust in the production environment.

    Rotary Follow Up Filling Structure Fully Automatic Rotary Bottled Powder Packaging Machine


    5.3 The whole machine electronic control system adopts French Schneider configuration, integrated electronic control system, more stable, reliable, safe and low energy consumption.
