TN-200LDS Single-side Self-adhesive Labeling Machine
1.Introduction
The equipment adopts programmable control, touch human-machine
interface, servo-driven labeling, the whole machine is convenient
and intuitive to operate, and has rich help function and fault
display function.
It is suitable for automatic labeling of self-adhesive labels on
all kinds of square and flat bottles.
2.Machine Dimension
3.Technical Parameters
| 1 | Labeling speed | 5L:2500 BPH,25L:1500 BPH *Actual capacity varies according to product size, package
material, material characteristics, etc. |
| 2 | Bottle Diameter | Mini 200×140×320mm Max 290×260×500mm |
| 3 | Label size | L ≤300mm H ≤200mm |
| 4 | Labeling precision | ±2mm 98% *Labeling accuracy varies according to material and label
material. |
| 5 | Power supply/power | ~220V 50Hz/2KW |
| 6 | Size of the whole machine | 3000×1400×1400mm(L×W×H) |
| 7 | Weight | ~400Kg |
4.Electrical Configuration
| No. | Name | Brand |
| 1 | PLC | Schneider |
| 2 | Touch Screens | Schneider |
| 3 | Inverter | Schneider |
| 4 | Servo System | Schneider |
| 5 | Fiber Optic Amplifier | Sick |

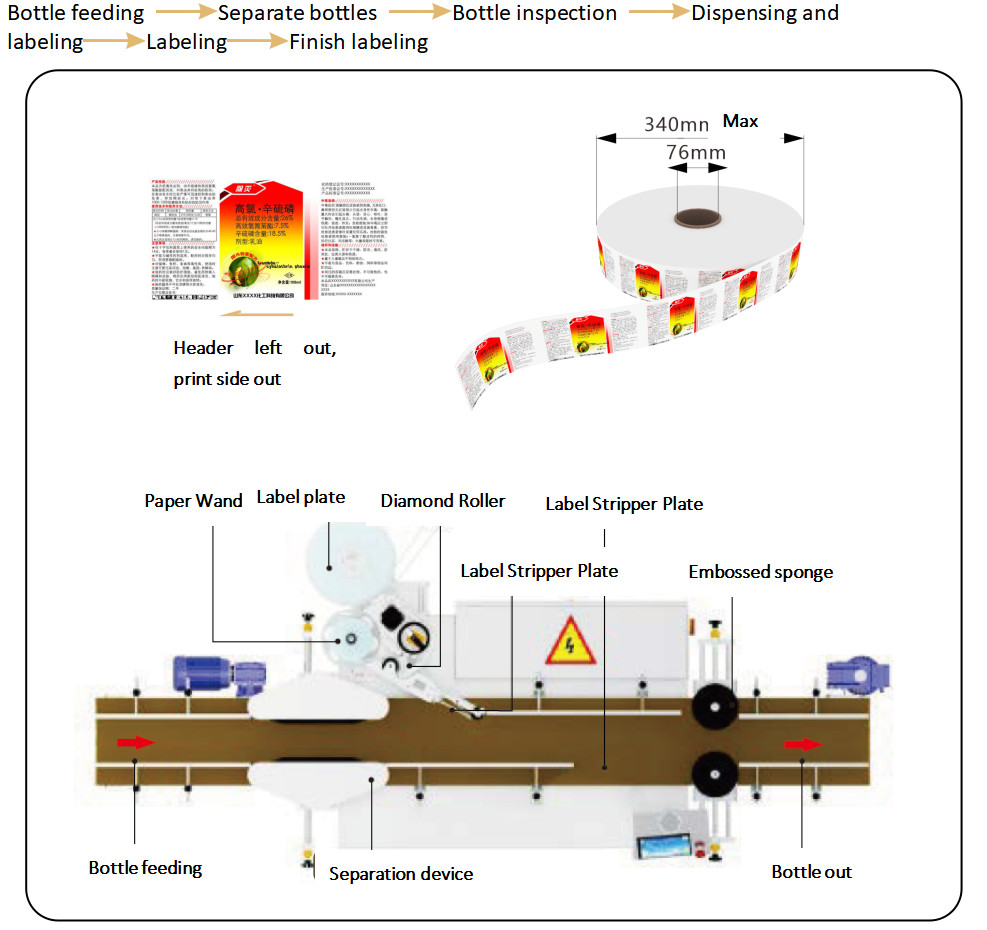

5.Working Process
6.Advantage
6.1 Servo system, using France Schneider Electric integrated servo
system, high efficiency, stability, low energy consumption.
6.2 When the equipment has no labeling broken labeling, automatic
shutdown and alarm prompts.
6.3 Each coordination function and alarm function protect the
equipment safety in all aspects.
6.4 Digital adjustment handle, adjustment is more intuitive, specification replacement is faster.
6.5 Pure alloy label feeding rollers are non-slip, stable label feeding, more wear-resistant and
significantly stronger than traditional rubber rollers.
7.Support and Services:
Labeling Machine Technical Support & Services
Our technical support and services for the Labeling Machine are designed to provide the most comprehensive assistance for our
customers. Our team of experienced engineers and technicians are
available to provide assistance with installation, maintenance,
troubleshooting, and repair services.
We offer in-house training on the operation and maintenance of the
machine to ensure that our customers can get the most out of their
purchase. Additionally, we provide online support through our
website, which includes FAQs, product manuals, and other helpful
resources.
If you ever have any questions or concerns about the Labeling Machine our team of experts are available to help. We believe that
customer satisfaction is our top priority, and we strive to provide
the best technical support and services possible.
8.Packing and Shipping:
Packaging and Shipping
The Labeling Machine will be securely packaged in a cardboard box to protect it during
shipping. We will use a reliable carrier to ship the product to the
customer's address.
9.FAQ:
Q1: What is the Brand Name of the Labeling Machine?
A1: The Brand Name of the Labeling Machine is JWIM.
Q2: What is the Model Number of the Pesticide Labeling Machine?
A2: The Model Number of the Bag Packing Machine is TN-200LDS.
Q3: Where is the Labeling Machine manufactured?
A3: The Labeling Machine is manufactured in China.
Q4: Does the Labeling Machine require special maintenance?
A4: The Labeling Machine requires regular maintenance to ensure proper operation.
Q5: What is the capacity of the Labeling Machine?
A5: The capacity of the Labeling Machine is determined by the size of the container to be filled.
