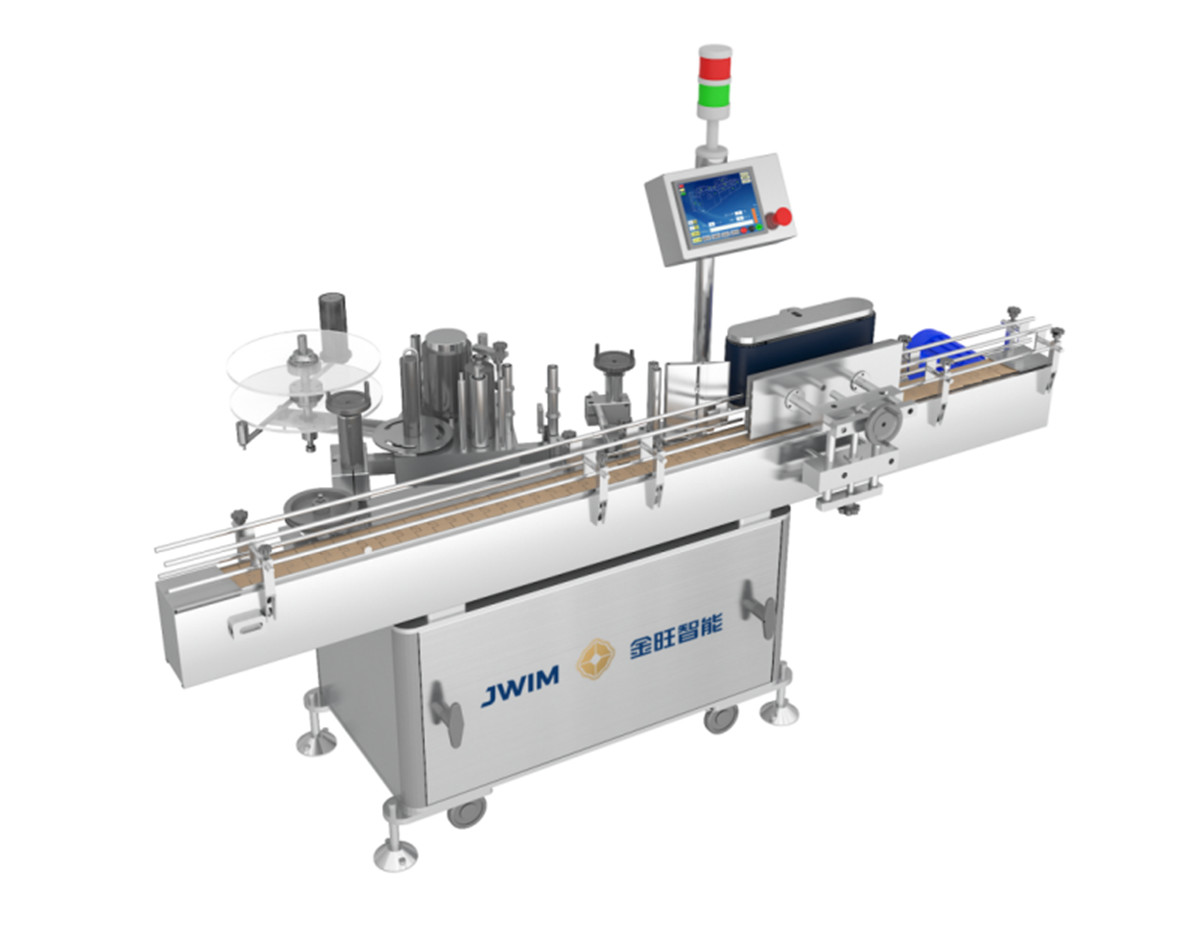

TN-150 Intelligent Self-adhesive Labeling Machine
1.Introduction
TN-150DL intelligent self-adhesive labeling machine adopts
programmable control, touch human-machine interface, servo-driven
labeling, the whole machine is easy to operate, intuitive, and has
a fault display function.
It is suitable for automatic labeling of self-adhesive labels of
various round containers.
2.Machine Dimension
3.Technical Parameters
| 1 | Labeling speed | ≤7000 BPH(100ml) *Actual capacity varies according to product size, package
material, material characteristics, etc. |
| 2 | Bottle Diameter | Φ30-95mm |
| 3 | Label Size | 50-280*40-140mm(L*H) |
| 4 | Label Length | 50-280mm |
| 5 | Labeling precision | ±1mm 95% *Labeling accuracy varies according to material and label
material. |
| 6 | Applicable Label | Label roll inner diameter Φ76.2mm Maximum label roll outer diameter
Φ340mm Label backing width 16~200mm |
| 7 | Power Supply/Power | ~220V 50Hz/1.1KW |
| 8 | Machine Size | 2200×1200×1350mm(L×W×H) |
| 9 | Weight | ~234Kg |
4.Electrical Configuration
| No. | Name | Brand |
| 1 | PLC | Inovance |
| 2 | Touch Screen | Inovance |
| 3 | Inverter | Inovance |
| 4 | Servo motor | Inovance |
| 5 | Switching Power Supply | Schneider |
| 6 | Breaker | Schneider |
5.Working Process
6.Advantage
6.1 Servo motor + reducer drive labeling mechanism, supporting double
buckle paper pressure mechanism, improve the stability of labeling.
6.2 The label feeder adopts wear-resistant rubber produced by
special process, made of drive roller structure: excellent friction, non-slip characteristics to ensure the lasting
stability of the label feeding function.
6.3 The whole machine electronic control system adopts domestic
famous brand, integrated electronic control system, more economical
and applicable.
6.4 The independent motor controls the speed of rolling label,
which is easy to adjust and saves adjustment time.
6.5 Adopting single bottle dividing wheel structure, making the
spacing of bottles to be labeled more accurate and consistent.
6.6 The center sleeve of the label placing tray adopts double-layer
fixation, which can meet the label rolls with different sizes of
label rolls within a certain range.
6.7 Put the label tray center sleeve using soft polyurethane production, can meet a certain range of label rolls within the set
of different sizes of label rolls
7.Support and Services:
Labeling Machine Technical Support & Services
Our technical support and services for the Labeling Machine are designed to provide the most comprehensive assistance for our
customers. Our team of experienced engineers and technicians are
available to provide assistance with installation, maintenance,
troubleshooting, and repair services.
We offer in-house training on the operation and maintenance of the
machine to ensure that our customers can get the most out of their
purchase. Additionally, we provide online support through our
website, which includes FAQs, product manuals, and other helpful
resources.
If you ever have any questions or concerns about the Labeling Machine our team of experts are available to help. We believe that
customer satisfaction is our top priority, and we strive to provide
the best technical support and services possible.
8.Packing and Shipping:
Packaging and Shipping
The Labeling Machine will be securely packaged in a cardboard box to protect it during
shipping. We will use a reliable carrier to ship the product to the
customer's address.
9.FAQ:
Q1: What is the Brand Name of the Labeling Machine?
A1: The Brand Name of the Labeling Machine is JWIM.
Q2: What is the Model Number of the Pesticide Labeling Machine?
A2: The Model Number of the Bag Packing Machine is TN-150.
Q3: Where is the Labeling Machine manufactured?
A3: The Labeling Machine is manufactured in China.
Q4: Does the Labeling Machine require special maintenance?
A4: The Labeling Machine requires regular maintenance to ensure proper operation.
Q5: What is the capacity of the Labeling Machine?
A5: The capacity of the Labeling Machine is determined by the size of the container to be filled.
