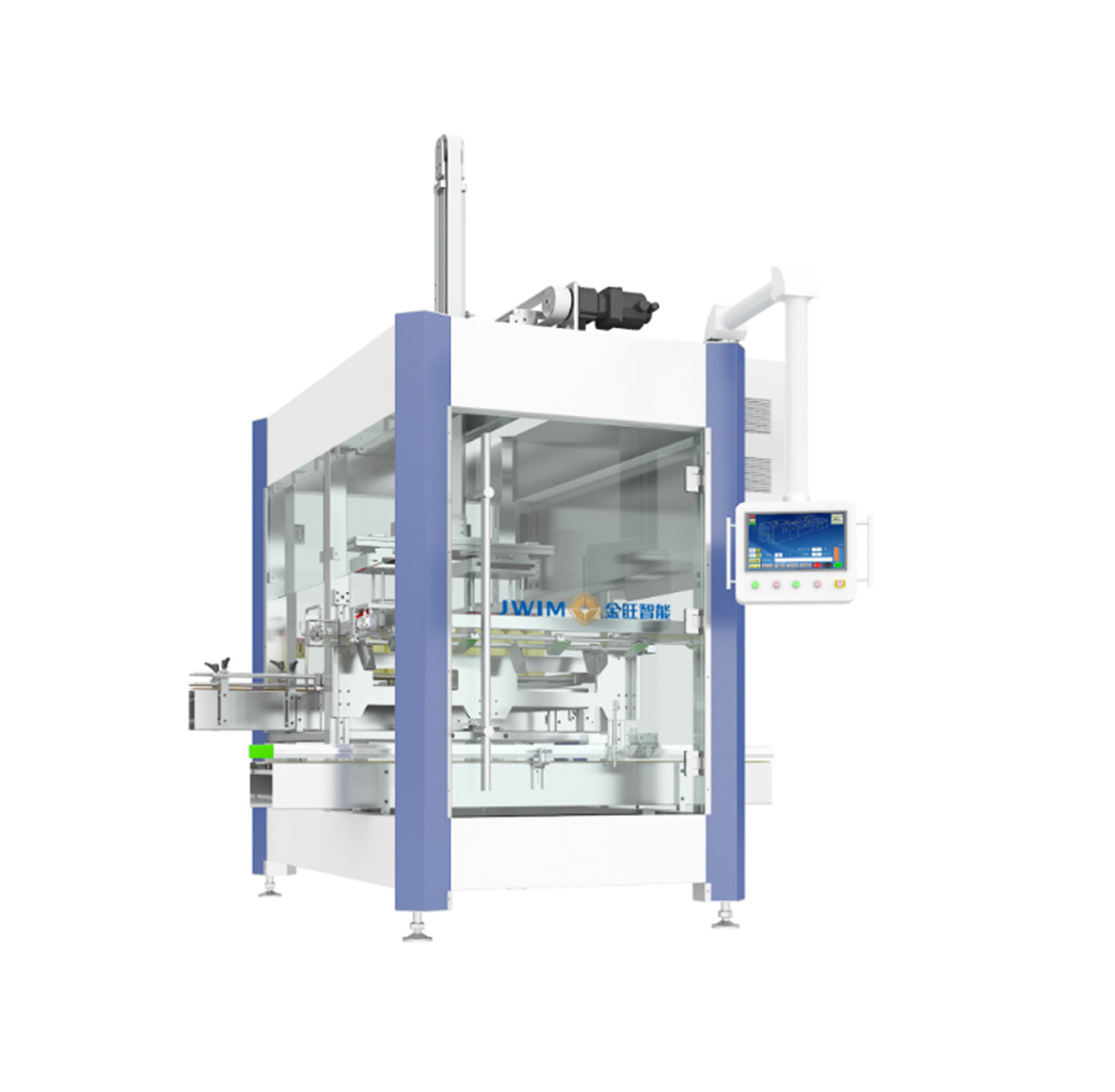

KZ-2T Full Automatic Carton Packing Machine
1.Introduction
This machine is suitable for automatic carton of regular round or
square glass bottles and plastic bottles, realizing fully automatic
secondary packaging of cartons, which can be applied to automatic
carton of bottled products in agrochemical, veterinary medicine,
food, daily chemical, pharmaceutical, and other industries.
According to the demand of production capacity, it can choose one
carton or two cartons.

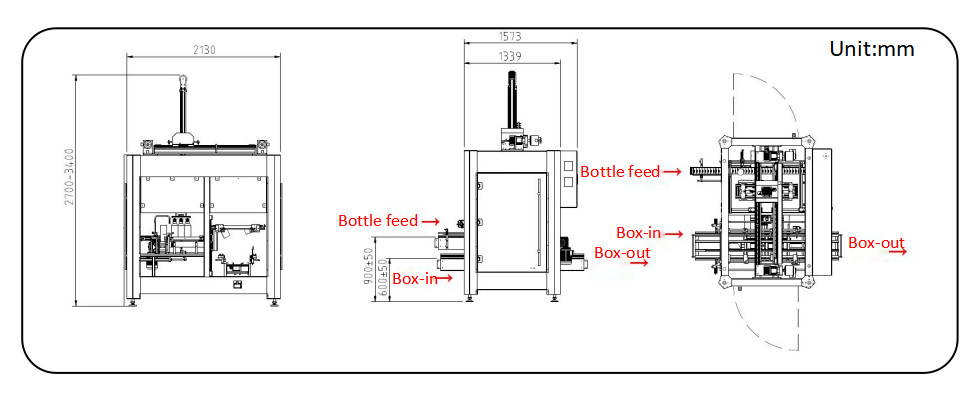

2.Machine Dimension
3.Technical Parameters
| 1 | Packing Speed | ≤6 cartons/min (Packed in a carton without centerboard) ≤8 cartons/min (Packed in two cartons without centerboard) *Actual capacity varies depending on product size, package
material, etc. |
| 2 | Carton Size | L 300-500mm W 200-400mm H 100-300mm |
| 3 | Bottle Size | Φ40-95mm H80-230mm |
| 4 | Passing Rate | 99.9% |
| 5 | Air Pressure | 0.6-0.8MPa |
| 6 | Power Source | ~380V 50Hz/3.3KW |
| 7 | Lifting Limit | Lift the highest point to the ground 3400mm |
| 8 | External Dimension | 2000×2200×2800-3600mm (L×W×H) |
| 9 | Weight | About 1200Kg |
4.Electrical Configuration
| S/N | Name | Brands |
| 1 | Programmable Controller | Schneider |
| 2 | Touchscreen | Schneider |
| 3 | Frequency Converter | Schneider |
| 4 | Servo System | Schneider |
| 5 | Counting Senor | Sick |
| 6 | Proximity Switch | Schneider |
| 7 | Power Switch | Schneider |
| 8 | Pressure Switch | SMC |
| 9 | Cylinder | FTEC/Air TAC |
| 10 | Solenoid Switch | FTEC/Air TAC |
| 11 | Button | Schneider |
| 12 | Alarm Light | Schneider |
| 13 | Breaker | Schneider |
5.Working Process
6.Advantage
6.1 Saving production cost: save labor, improve production efficiency, can replace 2-3 carton
workers.
6.2 Wide range of applications: suitable for carton plastic bottles, glass bottles, aluminum
bottles, cartons and other packaging materials.
6.3 Adopting automatic carton-supporting mechanism, the range of
carton-supporting can be adjusted, and the process of box-loading
is more reliable.
6.4 Adopting front and rear clamping plate to clamp and push, no
bottle falling down, more accurate positioning.
6.5 Easy to adjust the specification: through the replacement of different carton molds (bottle gripper,
suction cup, gripper, etc.) with quick-fit connection, the
specification can be switched quickly. The owner is required to provide bottles, caps and matching
cartons, and our company is required to make the carton molds
according to the package materials and cartons.
6.6 Dual servo-driven "cross-shaped" movement mechanism to realize the
picking and loading of bottles, patented design, flexible and convenient adjustment.
6.7 Equipment to increase the safety door switch, open the door to stop when production, to protect personnel and
equipment safety. (This function is optional)
6.8 The whole electrical control system of the equipment adopts
French Schneider configuration uniformly, with good compatibility
and low energy consumption, ensuring the stability and reliability
of the equipment.
7.Support and Services:
Carton Packing Machine Technical Support & Services
Our technical support and services for the Labeling Machine are designed to provide the most comprehensive
assistance for our customers. Our team of experienced engineers and
technicians are available to provide assistance with installation,
maintenance, troubleshooting, and repair services.
We offer in-house training on the operation and maintenance of the
machine to ensure that our customers can get the most out of their
purchase. Additionally, we provide online support through our
website, which includes FAQs, product manuals, and other helpful
resources.
If you ever have any questions or concerns about the Labeling Machine our team of experts are available to help. We
believe that customer satisfaction is our top priority, and we
strive to provide the best technical support and services possible.
8.Packing and Shipping:
Packaging and Shipping
The Carton Erector will be securely packaged in a cardboard box to
protect it during shipping. We will use a reliable carrier to ship
the product to the customer's address.
9.FAQ:
Q1: What is the Brand Name of the Packing Machine?
A1: The Brand Name of the Packing Machine is JWIM.
Q2: What is the Model Number of the Packing Machine?
A2: The Model Number of the Packing Machine is KZ-2T .
Q3: Where is the Packing Machine manufactured?
A3: The Packing Machine is manufactured in China.
Q4: Does the Carton Packing Machine require special maintenance?
A4: The Carton Packing Machine requires regular maintenance to ensure proper operation.
Q5: What is the capacity of the Carton Packing Machine?
A5: The capacity of the Carton Packing Machine is determined by the size of the container to be filled.
