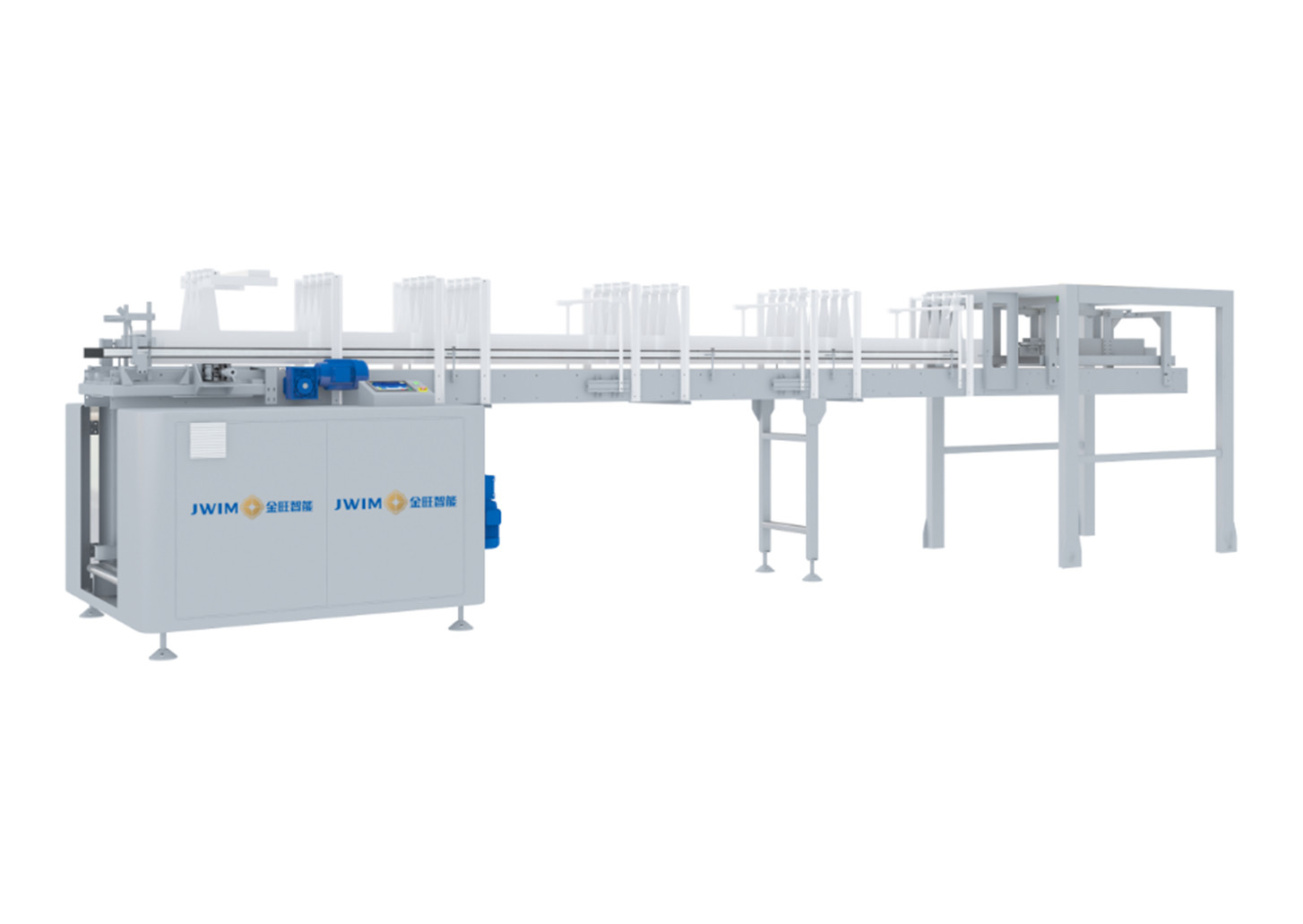

DZ-D Fully Automatic Drop-off Type Packing Machine
1.Introduction
The automatic drop packing machine, also known as the drop packing
machine, accurately moves the whole bottle above the carton,
according to the packing requirements, the whole column into the
carton through the positioning device.
Suitable for automatic packing of bottled, pot and barrel products
of various specifications.

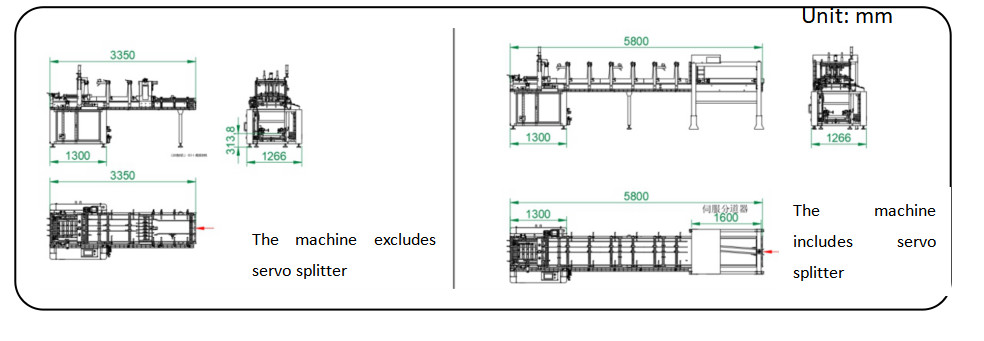

2.Machine Dimension
3.Technical Parameters
| 1 | Packing Speed | ≤12 Cartons/min *Actual capacity varies depending on product size, package
material, etc. |
| 2 | Carton Size | L 300-410mm W 150-330mm H 100-300mm |
| 3 | Passing Rate | 99.9% |
| 4 | Bottle Height | 1100±50mm |
| 5 | Carton Height | 310mm |
| 6 | Air Pressure | 0.6-0.8MPa |
| 7 | Power Source | ~380V 50Hz/3.85KW |
| 8 | External Dimension | 5800×1266×1850mm(L×W×H)*Includes servo splitter 3350×1266×1850mm(L×W×H)*Excludes servo splitter |
| 9 | Weight | About 700Kg |
4.Electrical Configuration
| S/N | Name | Brands |
| 1 | Programmable Controller | Schneider |
| 2 | Touchscreen | Schneider |
| 3 | Servo Motor | Schneider |
| 4 | Relay | Schneider |
| 5 | Photoelectric | SICK |
| 6 | Cylinder | FTEC/Air TAC |
| 7 | Solenoid Switch | FTEC/Air TAC |
5.Working Process
6.Applicable Bottle Size
7.Advantage
7.1 Servo motor control is adopted for the separation and alignment
mechanism, which is more stable and reliable. Such as: 2 * 2, 2 *
3... and other forms of packing,can meet the needs of different
arrangement of the carton.( This function is optional )
7.2 Unpacking machine is in place under the landing board. The
carton devices on both sides lift the box up, the arranged bottles
fall into the box, the container device goes down to the conveyor
belt, and the cartons continue to the next station.
8.Support and Services:
Carton Packing Machine Technical Support & Services
Our technical support and services for the Labeling Machine are designed to provide the most comprehensive
assistance for our customers. Our team of experienced engineers and
technicians are available to provide assistance with installation,
maintenance, troubleshooting, and repair services.
We offer in-house training on the operation and maintenance of the
machine to ensure that our customers can get the most out of their
purchase. Additionally, we provide online support through our
website, which includes FAQs, product manuals, and other helpful
resources.
If you ever have any questions or concerns about the Labeling Machine our team of experts are available to help. We
believe that customer satisfaction is our top priority, and we
strive to provide the best technical support and services possible.
9.Packing and Shipping:
Packaging and Shipping
The Carton Erector will be securely packaged in a cardboard box to
protect it during shipping. We will use a reliable carrier to ship
the product to the customer's address.
8.FAQ:
Q1: What is the Brand Name of the Packing Machine?
A1: The Brand Name of the Packing Machine is JWIM.
Q2: What is the Model Number of the Packing Machine?
A2: The Model Number of the Packing Machine is GPK-40 .
Q3: Where is the Packing Machine manufactured?
A3: The Packing Machine is manufactured in China.
Q4: Does the Carton Packing Machine require special maintenance?
A4: The Carton Packing Machine requires regular maintenance to ensure proper operation.
Q5: What is the capacity of the Carton Packing Machine?
A5: The capacity of the Carton Packing Machine is determined by the size of the container to be filled.
