    Automatic Carton Erector Machine Left In Right Out Open Carton For Agrochemical industry Bottle Filling Line

    Ask Lasest Price
    Brand Name : Jinwang
    Model Number : GPK-50
    Certification : CE, ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 1 set per month
    Delivery Time : 15-90 Working Days
    • Product Details
    • Company Profile

    Automatic Carton Erector Machine Left In Right Out Open Carton For Agrochemical industry Bottle Filling Line

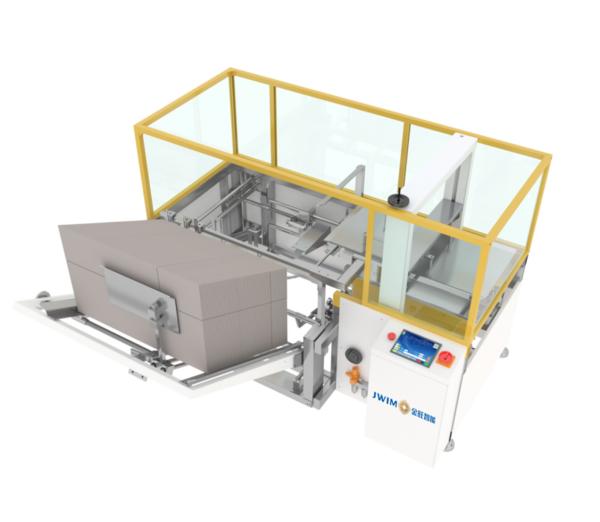

    GPK-50 Automatic Carton Erector(Left In,Right Out)

    1.Introduction

    The working process of the carton erector is open the carton, carton in shaped, bend the carton bottom and seal the bottom with adhesive tapes. After the carton bottom is bend and sealed, it will convey to the carton packing machine. The carton erector is widely used in the automatic carton packing industry. The whole process is controlled by the PLC and touch screen. It is a necessary part in the automatic packing process.


    Automatic Carton Erector Machine Left In Right Out Open Carton For Agrochemical industry Bottle Filling Line

    2.Machine Dimension

    Automatic Carton Erector Machine Left In Right Out Open Carton For Agrochemical industry Bottle Filling Line

    3.Technical Parameters


    1Carton Size

    L+W ≥550mm L+W≤1100mm

    L: 300-650mm W: 200-500mm H: 200-500mm

    2Platform HeightMIN:650mm MAX:700mm
    3Sealing Speed

    6-8Boxes/min

    *Actual capacity varies depending on product size, package material, etc.

    4Power Source~220V 50Hz/0.3KW
    5Air Supply0.6-0.8MPa
    6Adhesive Type SizeW48-60-75mm×L1000
    7Carton Storage

    50-70Pcs

    *Actual capacity varies depending on product size, package material, etc.

    8External Dimension2545×2160×1740mm(L×W×H)
    9WeightAbout 500Kg

    4.Packaging Workflow

    Automatic Carton Erector Machine Left In Right Out Open Carton For Agrochemical industry Bottle Filling Line


    5.Advantage

    5.1 It is with simple structure, intellectual coordinating function without human interval.Lightweight and flexible.


    5.2 Vertical carton storing, cartons can feeding at any time without stop, this will save time


    5.3 This machine is imported electrical configuration, reliable quality, strong applicability, high packing efficiency and long service life.


    5.4 The machine is with high automation: auto carton erecting, folding and bottom sealing. It uses PLC+Touch Screen control; it is a necessary part in the filling line.


    5.5 The parts are precise designed, no vibration during operation, stable running.

    Automatic Carton Erector Machine Left In Right Out Open Carton For Agrochemical industry Bottle Filling Line

    6.Support and Services:
    Labeling Machine Technical Support & Services

    Our technical support and services for the Labeling Machine are designed to provide the most comprehensive assistance for our customers. Our team of experienced engineers and technicians are available to provide assistance with installation, maintenance, troubleshooting, and repair services.

    We offer in-house training on the operation and maintenance of the machine to ensure that our customers can get the most out of their purchase. Additionally, we provide online support through our website, which includes FAQs, product manuals, and other helpful resources.

    If you ever have any questions or concerns about the Labeling Machine our team of experts are available to help. We believe that customer satisfaction is our top priority, and we strive to provide the best technical support and services possible.


    7.Packing and Shipping:

    Packaging and Shipping

    The Carton Erector will be securely packaged in a cardboard box to protect it during shipping. We will use a reliable carrier to ship the product to the customer's address.


    8.FAQ:

    Q1: What is the Brand Name of the Carton Erector?
    A1: The Brand Name of the Carton Erector is JWIM.
    Q2: What is the Model Number of the Pesticide LCarton Erector?
    A2: The Model Number of the Carton Erector is GPK-40 .
    Q3: Where is the Carton Erector manufactured?
    A3: The Carton Erector is manufactured in China.
    Q4: Does the Carton Erector require special maintenance?
    A4: The Carton Erector requires regular maintenance to ensure proper operation.
    Q5: What is the capacity of the Carton Erector?
    A5: The capacity of theCarton Erector is determined by the size of the container to be filled.
