TS-150B Self-adhesive Double-sided Multifunctional Labeling Machine
1.Introduction
This equipment is suitable for the packaging industry in the square
flat bottle and other products on the packaging for rapid automatic
labeling of the ideal equipment. This machine has advanced
function, simple operation and compact structure.
Adopting photoelectric detection, PLC control, touch screen
software operation, conveying, supporting the bottle, bottle are
stepless speed regulation, affixing the standard accurate; at the
same time has no object not labeling, no labeling automatic
correction, automatic detection and other functions.
2.Machine Dimension
3.Technical Parameters
| 1 | Labeling speed | 3000-6000 BPH *Actual capacity varies according to product size, package
material, material characteristics, etc. |
| 2 | Labeling precision | ±1mm *Labeling accuracy varies according to material and label
material. |
| 3 | Square bottle labeling range | L 20-150mm H 20-160mm |
| 4 | Round bottle labeling size | L 20-260mm H 140mm |
| 5 | Upper pressure adjustment range | 60-300mm |
| 6 | Output speed | 3~50 M/MIN |
| 7 | Label roll inner diameter | φ76mm |
| 8 | Maximum label roll outer diameter | φ340mm |
| 9 | Power supply/power | ~220V 50Hz/3.0KW |
| 10 | Overall Dimension | 3000×1640×1845mm(L×W×H) |
| 11 | Weight | ~ 550Kg |
4.Electrical Configuration
| No. | Name | Brand |
| 1 | PLC | Schneider |
| 2 | Touch Screens | Schneider |
| 3 | Inverter | Schneider |
| 4 | Servo System | Schneider |
| 5 | Fiber Optic Amplifier | Sick |
5.Working Process
6.Advantage
6.1 Labeling synchronization mechanism, hold down the top of the
bottle labeling more stable.
6.2 Adopt microcomputer control, touch screen software operation
interface, parameter adjustment is more convenient and intuitive.

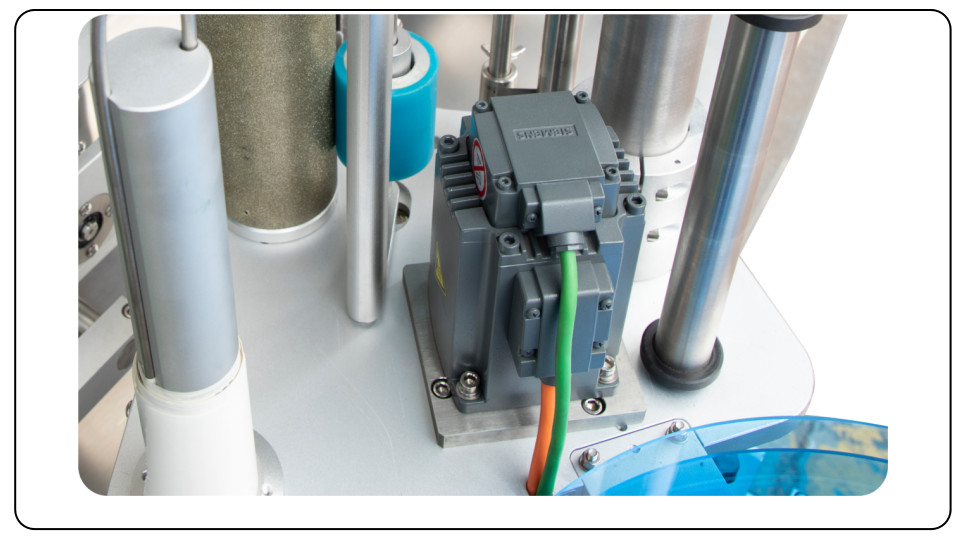

6.3 The labeling system adopts servo motor control to ensure
labeling precision.
6.4 Pure alloy labeling roller does not slip, stable labeling, more wear-resistant, significantly
stronger than the traditional rubber roller.
6.5 Digital adjustment handle, adjustment is more intuitive, specification replacement is faster.
6.6 The machine's working condition and failure, have reminded the
warning function, system operation, shutdown and have a fault
occurs, the system will be the occurrence of the event alarm
prompts.
6.7 Labeling electric eye sensitivity adjustable, different
transmittance of the label backing paper, can be identified and
compared to adjust the sensitivity, the length of different labels
can be optimally adjusted to ensure that the labeling is normal and
labeling smooth and accurate.
6.8 The whole machine adopts imported electrical components,
customized integrated electronic control system, more stable,
reliable, safe, green, low energy consumption
7.Support and Services:
Labeling Machine Technical Support & Services
Our technical support and services for the Labeling Machine are designed to provide the most comprehensive assistance for our
customers. Our team of experienced engineers and technicians are
available to provide assistance with installation, maintenance,
troubleshooting, and repair services.
We offer in-house training on the operation and maintenance of the
machine to ensure that our customers can get the most out of their
purchase. Additionally, we provide online support through our
website, which includes FAQs, product manuals, and other helpful
resources.
If you ever have any questions or concerns about the Labeling Machine our team of experts are available to help. We believe that
customer satisfaction is our top priority, and we strive to provide
the best technical support and services possible.
8.Packing and Shipping:
Packaging and Shipping
The Labeling Machine will be securely packaged in a cardboard box to protect it during
shipping. We will use a reliable carrier to ship the product to the
customer's address.
9.FAQ:
Q1: What is the Brand Name of the Labeling Machine?
A1: The Brand Name of the Labeling Machine is JWIM.
Q2: What is the Model Number of the Pesticide Labeling Machine?
A2: The Model Number of the Bag Packing Machine is TS-150B.
Q3: Where is the Labeling Machine manufactured?
A3: The Labeling Machine is manufactured in China.
Q4: Does the Labeling Machine require special maintenance?
A4: The Labeling Machine requires regular maintenance to ensure proper operation.
Q5: What is the capacity of the Labeling Machine?
A5: The capacity of the Labeling Machine is determined by the size of the container to be filled.
