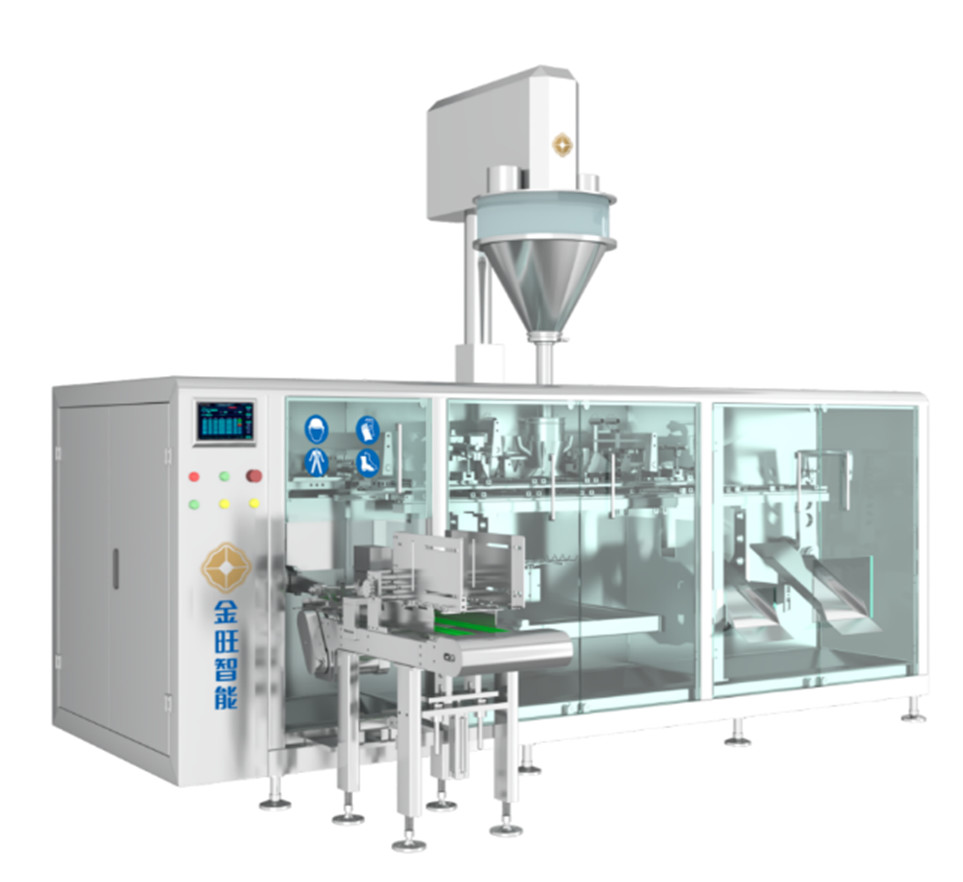

DGD-220BJ fully automatic horizontal bagging machine

1.Introduction

The DGD-220BJ fully automatic horizontal bagging machine includes a bag taking mechanism, a bag opening mechanism, a blowing mechanism, a filling mechanism, heat sealing, cold sealing and shaping, etc. The coordinated actions of each mechanism are completed through the mechanical linkage and cam structure, and the position signal is fed back by the encoder on the main shaft. Under the programmable control of PLC, the functions of bag taking → bag opening → detection → filling → sealing → finished product are realized .

The machine has a reasonable design and novel appearance. It adopts an arc-shaped frame and is equipped with a complete dust removal system, which meets the production requirements of safety and environmental protection. At the same time, by replacing the filler, automatic filling of various materials such as powders and granules can be realized on this machine. Suitable for packaging production of various types of premade bag products.

2. Technical Parameters

3. Allocation

4.Features:

4.1 This equipment is mainly used in the production of various types of premade bag products. The packaging is beautiful and well formed; there is almost no waste of packaging materials and materials.

4.2 More environmentally friendly: The whole machine has a closed design to isolate dust inside the machine, and is equipped with a stainless steel dust removal piping system, which is environmentally friendly and pollution-free. (Dust removal pipes and dust collector are optional features)

4.3 Easy maintenance: The flip-up ironing block structure makes maintenance and cleaning easy.

4.4 Cost saving: Unique mechanical bag opening detection function, no bag opening, no filling, no heat sealing, the bag can be reused, no waste of materials. Do not cut materials to avoid the generation of a large amount of dust. It is more effective than the general mold type bag opening device.

4.5 Using Spanish cam technology, the cam generally uses an internal cam, which does not move and has higher operating accuracy.

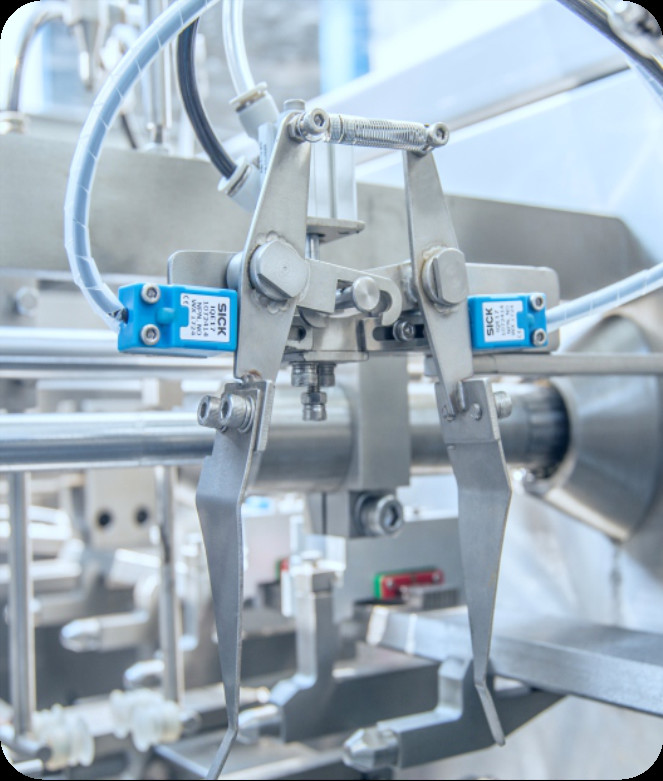

4.6 The bag picking structure is optimized to extend the bag suction time and make bag picking more accurate;At the same time, the large-capacity bag placing mechanism can store about 300-500 bags. When the equipment is running, it can reduce the frequency of bag placing and improve production efficiency.

4.7 More durable:Exquisite design technology and imported CNC center parts processing, high precision and high standards ensure the stability and durability of each part.

4.8 Temperature control integrated module: real-time monitoring of temperature changes,Touch screen operation control, clear at a glance, ensuring the stability and reliability of equipment operation to the greatest extent.

4.9 Comes with a vacuum pump to reduce the impact of external air pressure fluctuations on bag loading and bag opening.

4.10 There is a trapezoidal water tank at the bottom of the whole machine, and the water outlet is connected to the sewage pipe, making cleaning and drainage more convenient.

5.Support and Services:

Our technical support and services for the Bag Packing Machine are designed to provide the most comprehensive assistance for our customers. Our team of experienced engineers and technicians are available to provide assistance with installation, maintenance, troubleshooting, and repair services.

We offer in-house training on the operation and maintenance of the machine to ensure that our customers can get the most out of their purchase. Additionally, we provide online support through our website, which includes FAQs, product manuals, and other helpful resources.

If you ever have any questions or concerns about the Bag Packing Machine, our team of experts are available to help. We believe that customer satisfaction is our top priority, and we strive to provide the best technical support and services possible.

6.Packing and Shipping:

The Bag Packing Machine will be securely packaged in a cardboard box to protect it during shipping. We will use a reliable carrier to ship the product to the customer's address.

7.FAQ:

JiangSu Enterprise profile of Jiangsu Jinwang Intelligent Sci-tech Co., Ltd.

Jiangsu Jinwang Intelligent Sci-tech Co., Ltd.(JWIM), established in 2005, is a high-tech enterprise specializing in R&D, manufacturing, sales and service of pesticides, fertilizers, veterinary drugs and feed intelligent factories (intelligent processing, intelligent packaging, intelligent storage and intelligent office). Over the past 16 years, Jinwang has served nearly 3000 agrochemical preparation enterprises at home and abroad. At present, the company has a registered capital of 20 million, covers an area of 100 mu, a construction area of 100000 square meters, has more than 600 employees and more than 300 professional and technical personnel. Jinwang has passed the EU CE certification, CMP certification, ISO9001 quality management system certification, OHSAS18001 occupational health and safety management system certification and ISO14001 environmental management system certification, and has obtained more than 70 patent certificates. The production scale and technical level are among the forefront of domestic peers.The products are exported to more than 50 countries and regions such as the United States, Malaysia, Vietnam, Japan, Egypt, Turkey, Thailand, South Korea, Saudi Arabia, Austria and Australia. Jinwang is rated as high-tech enterprise and famous trademark of Jiangsu Province.
In recent years, Jinwang intelligent has closely focused on the market, continuously carried out research and development of new products, professionally focused on the integration of intelligent factories of agricultural and veterinary preparations. To make this industry specialized, refined, thorough, strong and unparalleled, and become the first brand in the world! At present, Jinwang is a leading enterprise in the domestic agricultural and veterinary preparation packaging machinery industry. And the domestic market share is more than 30%.
Our mission: to accelerate the arrival of intelligent era of the global agricultural and veterinary preparation industry
Our vision: to build a world-class Internet service platform for intelligent factories of agricultural and veterinary preparations
Core code of conduct: 1. Customer first; 2. Continuous innovation; 3. Coordinated operations; 4. Keep promises; 5. Details are king; 6. Data speaks.
Our original intention: 1. Create value for customers; 2. Create happiness for employees; 3. Contribute to society.
