CC300C Fixed Quantity Weight Filling Machine
1. Introduction
CC300C Fixed Quantity Weight Filling Machine adopts the latest
weighing and filling system, with a human-machine interface to set
the filling amount, automatic weighing and filling, and adjustable
filling speed. It can meet the needs of a variety of liquid
automatic filling both with and without foam.
2.Filling Container Information
Small Opening/ Closed Steel Drums GB/T325.5-2015
B Type Plastic DrumsGB18191-2008
3.Technical Parameters
| 1 | Container Diameter | Refer to filling container information table. *Can accept
customization. |
| 2 | Filling Range | 100-300L Drums,maximumΦ580*930mm Round drum
|
| 3 | Division Value | 100g |
| 4 | Filling Precision | ±0.1% *①
|
| 5 | Capacity | 30 Drums/hour(200L) *②
|
| 6 | Product Feeding Height | 1940mm |
| 7 | Product Feeding Diameter | Φ35mm |
| 8 | Filling Nozzle Diameter | Φ40mm |
| 9 | Min Opening Diameter | ≥Φ55mm |
| 10 | Air Pressure | 0.6-0.8MPa |
| 11 | Power Source | ～380V 50Hz/1KW |
| 12 | External Dimension | 730×1300×3400mm (L×W×H) |
| 13 | Weight | About 350Kg |
*① Marked accuracy is the accuracy of water test before the
equipment leaves the factory.
The actual filling accuracy is different due to the influence of
customer material viscosity, temperature, incoming pressure
stability and other field conditions.
*② Marked capacity is based on testing capacity with water before
the equipment leaves the factory.
The actual filling speed is due to the customer’s on-site incoming
pipeline pressure and flow rate.
Material viscosity and foam factors are different; The difference
in configuration requirements such as surface filling and under
surface filling and bottom filling will also affect the actual
production capacity.
4.Allocation
| No. | Name | Brand |
| 1 | Weighing System | METTLER TOLEDO |
| 2 | PLC | Schneider |
| 3 | HMI | Schneider |
| 4 | Inverter | Schneider |
| 5 | Counting Sensor | SICK |
| 6 | Proximity Switch | Schneider |
| 7 | Pressure Gauge | SMC |
| 8 | Cylinder | Air TAC |
| 9 | Solenoid Valve | FTEC |
| 10 | Button | Schneider |
| 11 | Alarm Light | Schneider |
| 12 | Circuit Breaker | Schneider |
5.Working process
Manual Drum Placing——Manual Alignment of Drum Mouth——Filling
(Filling Submergence, Ascent, Filling Valve Closed)—— Drum
Discharge
6.Features6.1 Small footprint, compact structure, simple to use, only one person
to operate, save labor.
6.2 High Precision: Weighing filling (US Mettler Toledo Weighing
Sensor) to make sure the high filling precision.
6.3 Fast and slow filling valve is adopted to ensure the accuracy of
filling without affecting the overall filling speed. With filling
nozzle diving mechanism, it can both fill on or under liquid
surface, suitable for filling products with no foam or slight foam.

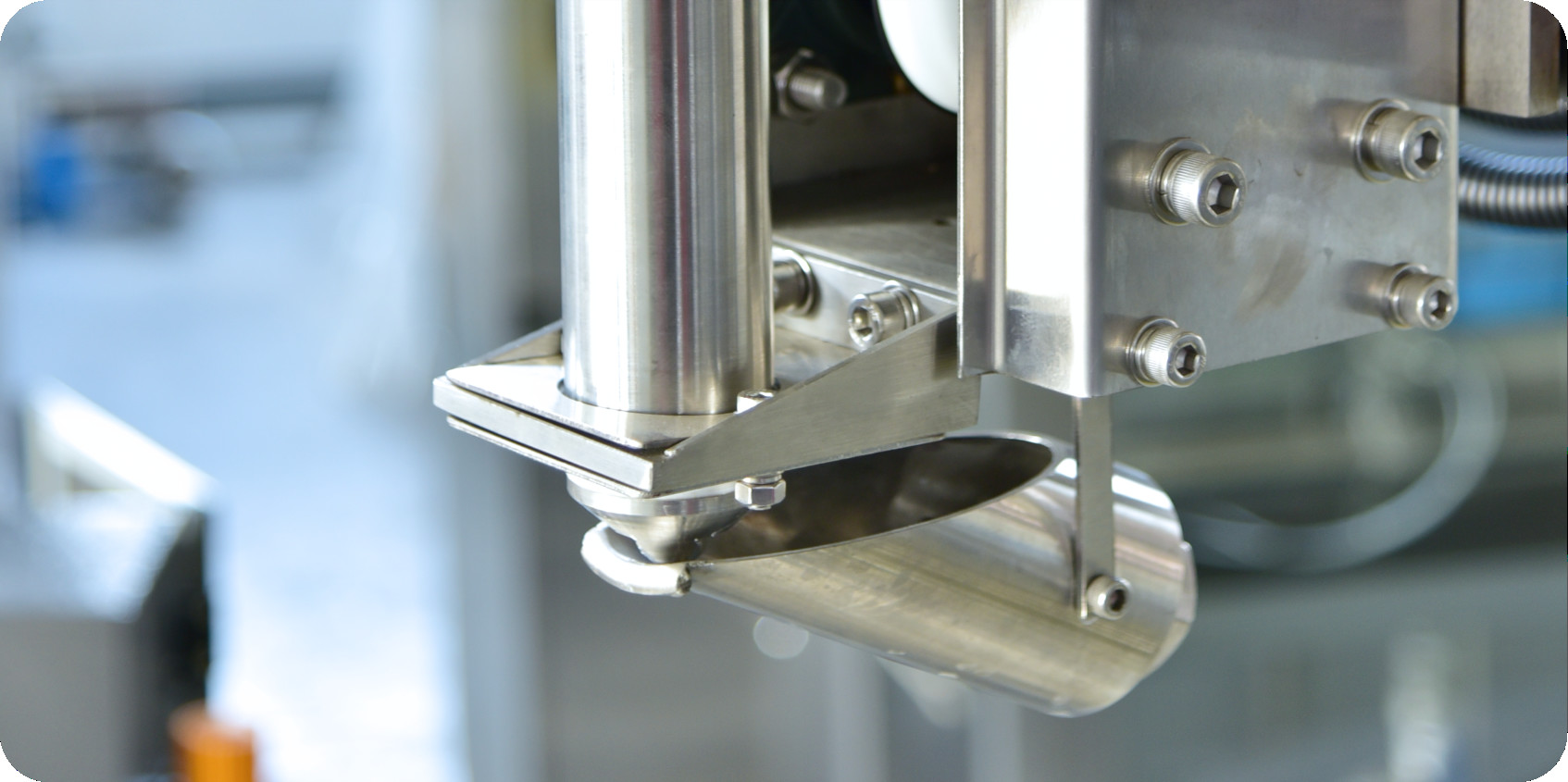

6.4 The filling head is equipped with a rotating liquid cup. After
filling, the liquid cup will collect the residual material on the
filling head to prevent the product from leaking and contaminating
the container.
6.5 The machine uses France Schneider Control system to control the
operating stability. Meanwhile, the control system is with low
energy consumption. Compared with various miscellaneous brands used
by other manufacturers, France Schneider Control system has a high
level of protection, stable reliability and safety level, service
life, especially in the follow-up upgrade of the matching more
advantages.
7.Support and Services:
Pesticide Filling Machine Technical Support & Services
Our technical support and services for the Pesticide Filling
Machine are designed to provide the most comprehensive assistance
for our customers. Our team of experienced engineers and
technicians are available to provide assistance with installation,
maintenance, troubleshooting, and repair services.
We offer in-house training on the operation and maintenance of the
machine to ensure that our customers can get the most out of their
purchase. Additionally, we provide online support through our
website, which includes FAQs, product manuals, and other helpful
resources.
If you ever have any questions or concerns about the Pesticide
Filling Machine, our team of experts are available to help. We
believe that customer satisfaction is our top priority, and we
strive to provide the best technical support and services possible.
