1. Introduction
CC-1000 Fixed Quantity Weight Filling Machine adopts the weighing
to monitor the current filling quantity in real time and feedback
to the controller, which outputs fast and slow filling control
signals according to the set data to achieve fast and accurate
filling of big containers. It can meet the needs of a variety of
liquid automatic filling both with and without foam.

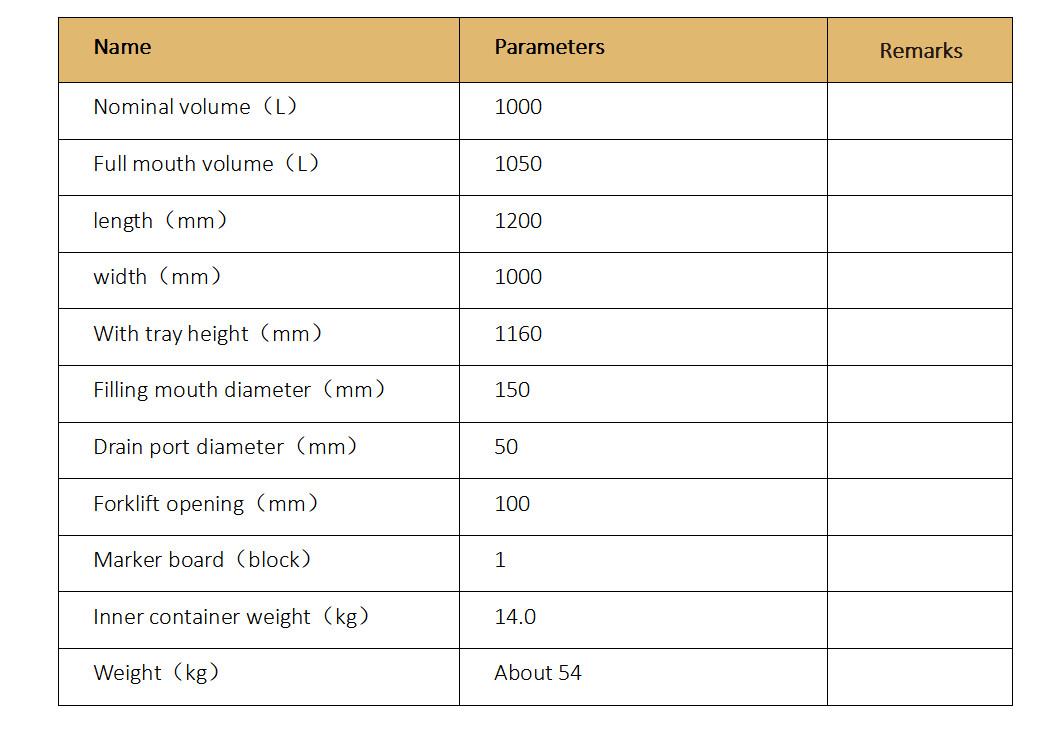

2.Filling Container Information
Small Opening/ Closed Steel Drums GB/T325.5-2015
B Type Plastic DrumsGB18191-2008
3.Technical Parameters
| 1 | Filling Range | 200-1000kg |
| 2 | Division Value | 200g |
| 3 | Filling Precision | ±0.1%
|
| 4 | Capacity | 200L:35-45Drums/hour 1000L:5Drums/hour *Capacity differs from product, drum and product characteristic. |
| 5 | Material temperature | Normal temperature |
| 6 | Weighing device | 1200×1200×90mm(L×W×H) |
| 7 | Maximum pallet size | 1200×1200×150mm(L×W×H) |
| 8 | Applicable ambient temperature range | 0-40℃ |
| 9 | Relative humidity | 56-78%,non-condensing |
| 10 | Power Source | ～380V 50Hz/0.6KW |
| 11 | Air Pressure | 0.6-0.8MPa |
| 12 | Material pressure | ≤0.2MPa |
| 13 | Product Feeding Height | 1700mm |
| 14 | Inlet tube diameter | φ44mm |
| 15 | Filling head outside diameter | φ48mm |
| 16 | Opening Diameter | ≥φ58mm |
| 17 | External Dimension | 2340×685×4000mm(L×W×H) |
| 18 | Weight | 1300kg |
| 19 | The column of the filling machine needs to be fixed on the ground
with expansion screws. |
4.Allocation
| No. | Name | Brand |
| 1 | PLC | Schneider |
| 2 | HMI | Schneider |
| 3 | Inverter | Schneider |
| 4 | Servo System | Schneider |
| 5 | Counting Sensor | SICK |
| 6 | Proximity Switch | Schneider |
| 7 | Power Switch | Schneider |
| 8 | Pressure Gauge | SMC |
| 9 | Cylinder | FTEC |
| 10 | Solenoid Valve | FTEC |
| 11 | Button | Schneider |
| 12 | Alarm Light | Schneider |
| 13 | Circuit Breaker | Schneider |
5.Features
5.1 Small footprint, compact structure, simple to use, only one person
to operate, save labor.
5.2 High Precision: Weighing filling (US Mettler Toledo Weighing
Sensor) to make sure the high filling precision.

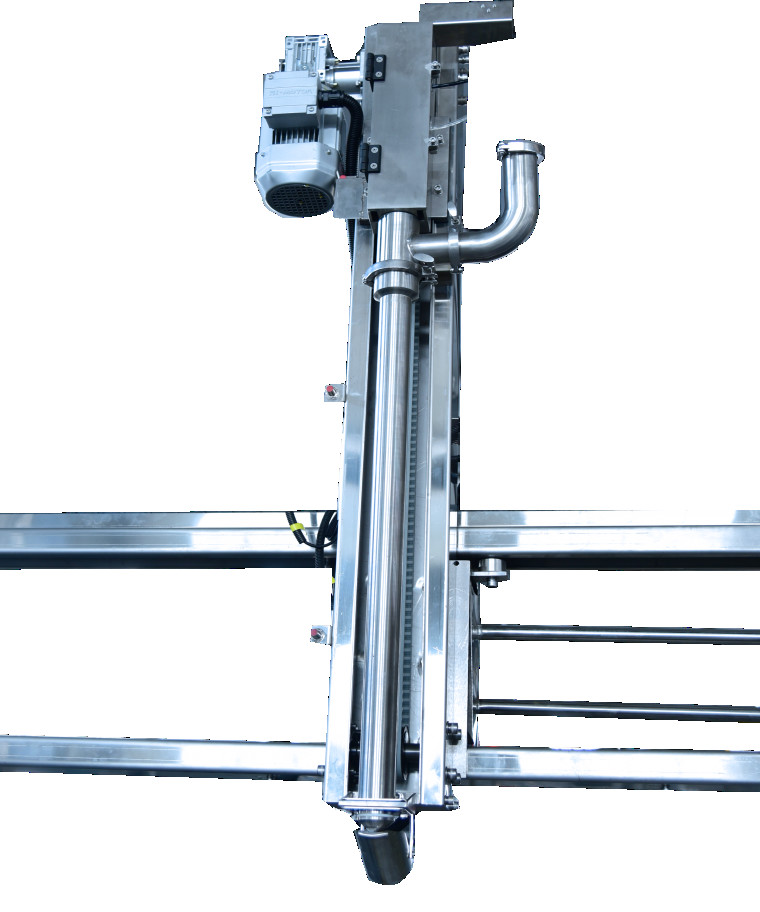

5.3The filling head is equipped with a rotating liquid cup. After
filling, the liquid cup will collect the residual material on the
filling head to prevent the product from leaking and contaminating
the container.
5.4 Fast and slow filling valve is adopted to ensure the accuracy of
filling.
5.5 Submersible filling head to avoid material spatter.
5.6 Automatic diagnosis, automatic fault alarm function, improve
the reliability of the system.
5.7. Tare detection function, used to detect whether the container
on the scale table is correct or there are materials in the
container.
5.8. The machine adopts the latest Schneider electric Control
system, stable control, and relatively low power consumption.
6.Support and Services:
Pesticide Filling Machine Technical Support & Services
Our technical support and services for the Pesticide Filling
Machine are designed to provide the most comprehensive assistance
for our customers. Our team of experienced engineers and
technicians are available to provide assistance with installation,
maintenance, troubleshooting, and repair services.
We offer in-house training on the operation and maintenance of the
machine to ensure that our customers can get the most out of their
purchase. Additionally, we provide online support through our
website, which includes FAQs, product manuals, and other helpful
resources.
If you ever have any questions or concerns about the Pesticide
Filling Machine, our team of experts are available to help. We
believe that customer satisfaction is our top priority, and we
strive to provide the best technical support and services possible.
7.Packing and Shipping:
Packaging and Shipping
The Pesticide Filling Machine will be securely packaged in a
cardboard box to protect it during shipping. We will use a reliable
carrier to ship the product to the customer's address.
8.FAQ:
Q1: What is the Brand Name of the Pesticide Filling Machine?
A1: The Brand Name of the Pesticide Filling Machine is JWIM.
Q2: What is the Model Number of the Pesticide Filling Machine?
A2: The Model Number of the Pesticide Filling Machine is CC1000.
Q3: Where is the Pesticide Filling Machine manufactured?
A3: The Pesticide Filling Machine is manufactured in China.
Q4: Does the Pesticide Filling Machine require special maintenance?
A4: The Pesticide Filling Machine requires regular maintenance to
ensure proper operation.
Q5: What is the capacity of the Pesticide Filling Machine?
A5: The capacity of the Pesticide Filling Machine is determined by
the size of the container to be filled.
