    3-6 Cases/Min IRB4600 Robot Packing Machine 380V 50Hz/4KW

    Ask Lasest Price
    Brand Name : JINWANG
    Model Number : IRB4600
    Certification : CE, ISO9001
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 1 Osets per month
    Delivery Time : 15-90 work days
    • Product Details
    • Company Profile

    3-6 Cases/Min IRB4600 Robot Packing Machine 380V 50Hz/4KW

    3-6 Cases/Min IRB4600 Robot Packing Machine 380V 50Hz/4KW

    1. Introduction

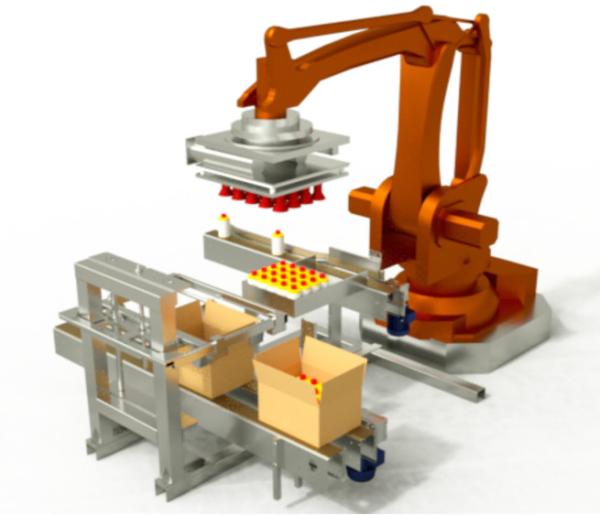

    The machine adopts ABB Robot to automatically load the whole column of bottles into bound cartons, and adopts composite gripper, which can not only realize automatic packing, but also realize the function of automatic bottom plate and top plate.

    The mechanical integration is simple and the programming is very convenient. It can be applied to the automatic production of bottled products in food, daily chemical, medicine, pesticide, veterinary medicine and other industries.


    2. Technical Parameters

    1Capacity

    3-6Cases/Min(Without medium board)

    *The actual production capacity changes according to the product size, packaging material and material characteristics.

    2Applicable Carton sizeL300-500mm W200-400mm H100-300mm
    3Applicable bottle sizeΦ40-90mm H80-230mm
    4Air pressure0.6-0.8MPa
    5Powder supply~380V 50Hz/4KW
    6Lift Limit3300mm from the highest lifting point to the ground
    7External Dimension2240×2250×2780mm(L×W×H)
    8WeightAbout1500Kg


    3. Allocations

    NO.NameBrand
    1PLCSchneider
    2Touch ScreenSchneider
    3Frequency converterSchneider
    4Photoelectric sensorSick
    5Proximity switchSchneider
    6Switching power supplySchneider
    7CylinderFTEC
    8Solenoid valveFTEC

    4. Advantages

    4.1. Save production cost: save labor and improve production efficiency. It can replace 2-3 packing workers.

    4.2. Wide application range: suitable for packing plastic bottles, glass bottles, aluminum bottles, cartons and other packaging materials.

    2.2. ABB Robot is used for automatic packing, with simple programming and convenient use.

    4.3. Convenient adjustment: through the replacement of different packing molds (bottle gripper, suction cup, gripper, etc.), the quick assembly connection can quickly switch the specifications. The owner is required to provide bottles, caps and supporting cartons. Our company needs to make packing molds according to packaging materials and cartons.

    4.4. It can automatically add bottom plate, middle plate, top and other functions. (this function is optional).
