1. Introduction

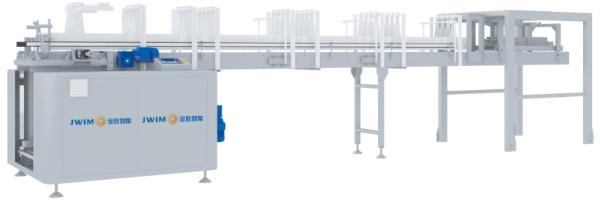

The Automatic drop packing machine, also known as the drop packing
machine, accurately moves the whole column of bottles to the top of
the carton, and automatically puts the whole column of packaged
articles into the carton through the positioning device according
to the packing requirements. It is suitable for automatic packing
of bottled and barreled products of various specifications.
2. Technical Parameters
1 | Capacity | ≤12 Cases/Min *The actual production capacity changes according to the product size, packaging material and material characteristics. |
2 | Applicable Carton size | L300-410mm W150-330mm H100-300mm |
3 | Height of conveying bottle | 1100±50mm |
4 | Height of conveying carton | 310mm |
5 | Air supply | 0.5-0.7MPa |
6 | Power supply | ~380V 50Hz/3.5KW |
7 | External Dimension | 5800×1400×1850mm(L×W×H) |
8 | Weight | About 700Kg |
3. Allocations
No. | Name | Brand |
1 | PLC | SIEMENS |
2 | Touch Screen | SIEMENS |
3 | Servo Motor | INOVANCE |
4 | Relay | Schneider |
5 | Sensor | SICK |
6 | Cylinder | AIRTAC |
7 | Solenoid Valve | AIRTAC |
8 | Circuit Breaker | Schneider |
4.1. The track dividing and column forming mechanism controlled by servo motor is more stable and reliable. For example, 2 * 2, 2 * 3... And other packing servo motor types can meet the packing requirements of different arrangement modes.
4.2. The boxes transported by the unpacking machine are in place under the bottle dropping plate, the box supporting devices on both sides lift the boxes upward, the arranged bottles fall into the box, the box supporting device returns to the conveyor belt downward, and the box continues to be transported to the next station.
![]() |
