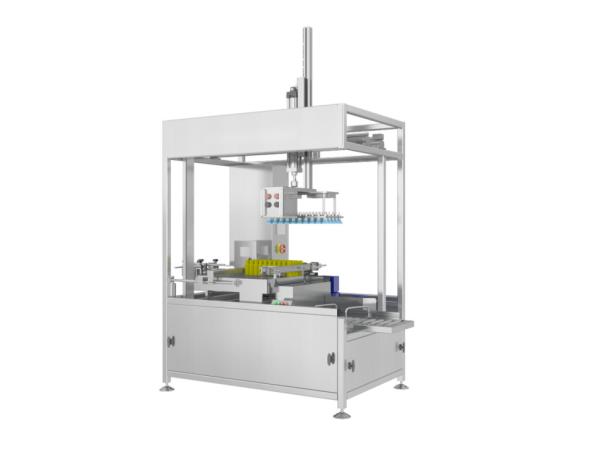

3-5 Cases/Min KZ-S Semi Automatic Packing Machine 380V 50Hz/1KW

    Buy cheap 3-5 Cases/Min KZ-S Semi Automatic Packing Machine 380V 50Hz/1KW from wholesalers

    Buy cheap 3-5 Cases/Min KZ-S Semi Automatic Packing Machine 380V 50Hz/1KW from wholesalers
    • Buy cheap 3-5 Cases/Min KZ-S Semi Automatic Packing Machine 380V 50Hz/1KW from wholesalers

    3-5 Cases/Min KZ-S Semi Automatic Packing Machine 380V 50Hz/1KW

    Ask Lasest Price
    Brand Name : JINWANG
    Model Number : KZ-S
    Certification : CE, ISO9001
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 1 Osets per month
    Delivery Time : 15-90 work days
    • Product Details
    • Company Profile

    3-5 Cases/Min KZ-S Semi Automatic Packing Machine 380V 50Hz/1KW

    3-5 Cases/Min KZ-S Semi Automatic Packing Machine 380V 50Hz/1KW
    1. Introduction

    KZ-S Semi-automatic Packing Machine makes packing easier, easier and faster. The machine can be operated by only one person to complete the process from bottle grasping to box entering, and finally complete the process of box sealing and packaging. It can effectively solve the difficult problem of manual packing. At the same time, the machine has the characteristics of compact structure and small space.


    2. Technical Parameters

    1Capacity3-5 Cases/Min(The speed depends on the packing arrangement and manual operation proficiency)
    2Applicable Carton sizeL 300-500mm W200-400mm H100-300mm
    3Applicable Bottle sizeΦ40-90mm H80-230mm
    4Air Pressure0.6-0.8MPa
    5Power supply~380V 50Hz/1KW
    6Lift Limit2850mm from the highest lifting point to the ground
    7External Dimension2080×1190×2810mm(L×W×H)
    8WeightAbout 400Kg


    3. Allocations

    No.NameBrand
    1PLCOMRON
    2Frequency ConveterOMRON
    3Photoelectric SensorSICK
    4Switching Power SupplySchneider
    5Pressure SwitchSMC
    6CylinderFTEC
    7Solenoid ValveFTEC
    8ButtonSchneider
    9BreakerSchneider

    4. Advantages

    4.1. The machine only needs one person to operate, can complete the packing of 3000-6000 bottles per hour, saves labor and effort, has a small area, compact structure, and the length of a single machine is only 2 meters.

    4.2. Wide range of applications: suitable for packing plastic bottles, glass bottles, aluminum bottles, cartons and other packaging materials.

    4.3. The button-type operation of grabbing the bottle is simple and easy to learn, fool-type operation, and low requirements for personnel.

    4.4. Convenient adjustment: through the replacement of different packing molds (bottle gripper, suction cup, gripper, etc.), the quick assembly connection can quickly replace the specifications. The owner is required to provide bottles, caps and supporting cartons. Our company needs to make packing molds according to packaging materials and cartons.
