High-Viscosity Filling Machine Various Water Agent, Emulsion, Oil Suspension, Suspension Agent High Viscosity Materials

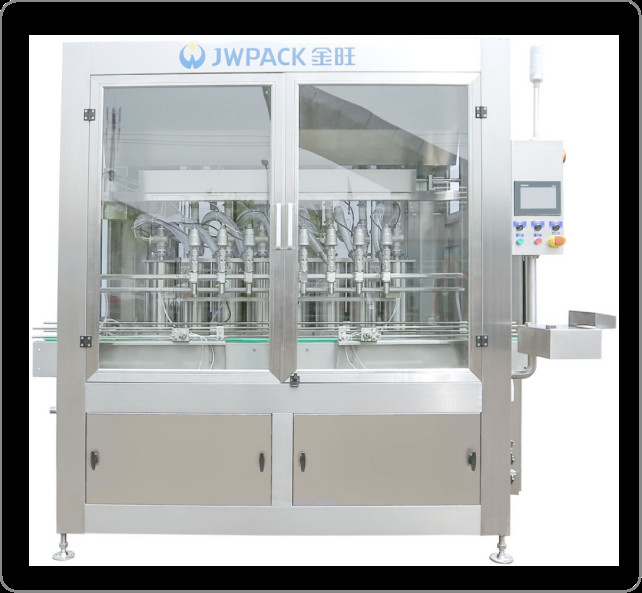

CCG5000-8D-type intelligent high-viscosity filling machine

General information:

CCG5000-6D type intelligent high viscosity filling machine is suitable for the packaging of various water agent, emulsion, oil suspension, suspension agent and high viscosity materials. The whole machine is inline structure, using servo motor drive and volume measurement and filling principle to realize the high precision of filling dose. PLC control, touch human-machine interface, convenient operation.

Technical parameters:

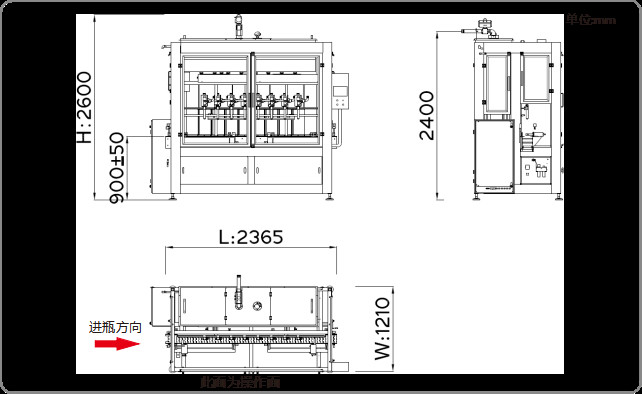

Equipment dimension drawing:

Equipment advantages:

1, is widely used in the automatic filling and production of 1-5L bottles in pesticides, fine chemical, daily chemical, fertilizers, oils and other industries.

2, Jinwang adopts PLC programming and control, servo motor drive synchronous belt with + drive stable double-wire bar lifting mechanism, which ensures the high precision of piston movement travel and realizes accurate filling.The synchronous belt with embedded metal wire will not break. At present, foreign first-class packaging manufacturers adopt this structure. Compared with similar products on the market, the ordinary motor + encoder is used, after the chain drive structure for a long time, the chain has a tensile nature, affecting the filling accuracy and equipment stability.

3, adopts integral cast filling head of 316, good molding and longer service life. Use tetrafluoror hose with good corrosion resistance for highly corrosive materials.

4,'s latest tetrafluorocarbon technology improved wear resistance, extended service life and reduced maintenance costs.

5,The whole machine adopts high quality SUS304 stainless steel, better adapted to the filling and production environment. Good anti-corrosion performance and easy for cleaning. Outoutsourced stainless steel and tempered glass door cover seal the body, and the exhaust outlet (nozzle aperture is Φ120mm diameter) can be connected to the factory air introduction system to discharge the exhaust gas from the filling process.

6, complete electric control system adopts French Schneider configuration and integrated electric control system, which is more stable and reliable, safe, green and low energy consumption.

7, filling machine is short of bottles, and the filling machine and the rear side are equipped with coordinated photoelectric. When the bottle is not blocked, it automatically realizes the linkage function with the rear equipment.

Main configuration of the equipment:
