    Quantitative Filling Machine Weighing Auto Liquid Filling Machine Equipment 100-250Kg

    CC300-2 fully automatic weighing-type quantitative filling machine

    General information:

    The equipment adopts the weighing method to monitor the current filling amount in real time and feedback it to the controller. The controller outputs the fast and slow filling control signals according to the set data to realize the fast and accurate filling of the large filling specifications. It makes up for the defect that the traditional flowmeter filling machine cannot accurately measure the sticky liquid. The equipment can meet the needs of automatic filling of various liquid and meet the filling without foam and foam liquid.

    Quantitative Filling Machine Weighing Auto Liquid Filling Machine Equipment 100-250Kg

    Technical parameters:


    1Container inlet diameterΦ55-65mm.
    2Container specificationsΦ500-700mm. High level: 800-1000mm
    3Scale the range100-250Kg.
    4Degree value100g.
    5Fill accuracy± 0.2% (* Precision depends on material viscosity and continuity and stability of material supply)
    6Fill speed

    35-45 bb / h

    (* The actual filling rate depends on the feed speed and flow of the material)

    7Ineding height2425mm.
    8Corresponding to the minimum barrel mouth inner diameter≥ Φ55mm.
    9Air source pressure0.6-0.8MPa.
    10Power Supply / Power~380V. 50Hz/5KW.
    11Overall dimensions1680 × 1620 × 2750mm (L × W × H)
    12WeightAbout 1,000 Kg

    Equipment dimension drawing:

    Quantitative Filling Machine Weighing Auto Liquid Filling Machine Equipment 100-250Kg

    Equipment advantages:

    1, Process Flow:Manual bucket- -manual unloading cover- -automatic bucket entering- -automatic port search- -automatic weighing filling- -out bucket- -manual rotary cover.

    Quantitative Filling Machine Weighing Auto Liquid Filling Machine Equipment 100-250Kg

    2, empty bucket of two groups into the filling machine drum bucket positioning, automatic filling head matching, filling head drop, nitrogen filling, fast acceleration, slow increase, quantity closing valve, filling head rise, full bucket out, empty bucket into.(Nitrogen charging function is optional)

    Quantitative Filling Machine Weighing Auto Liquid Filling Machine Equipment 100-250Kg

    3, high accuracy: The American Metel-Toledo METTLER TOLEDO weighing sensor is adopted to ensure the high accuracy of filling measurement.

    Quantitative Filling Machine Weighing Auto Liquid Filling Machine Equipment 100-250Kg

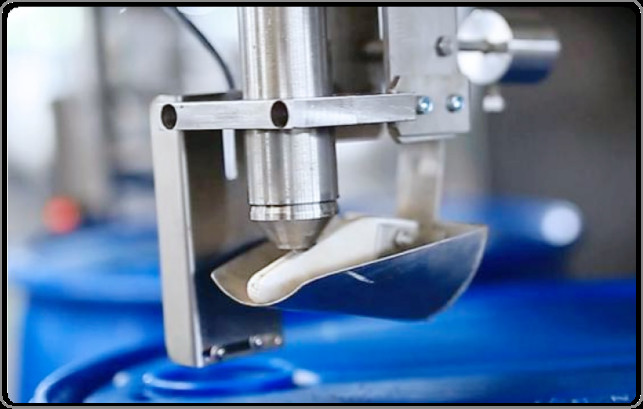

    4,The filling head adds the rotating liquid cup to collects the remaining materials on the filling head to prevent material leakage from polluting the barrel mouth.

    Quantitative Filling Machine Weighing Auto Liquid Filling Machine Equipment 100-250Kg

    5, adopts fast and slow filling valve, without affecting the speed of the overall filling. Cooperate with submersible mechanism, filling on or under liquid surface, suitable for filling without foam or mild foam materials.

    Quantitative Filling Machine Weighing Auto Liquid Filling Machine Equipment 100-250Kg

    6, bucket retaining mechanism adopts the cylinder on both sides to realize the accurate and firm bucket retaining mechanism. When the filling machine is filled, the next bucket is transported when the filling cylinder is recovered, and the empty bucket enters the filling machine.

    7, automatic shift door: manually put the empty bucket on the inlet bucket roller. When the inlet bucket photoelectric detects a bucket, the shift door is automatically open to deliver the empty bucket to the automatic search station.(This function is optional)

    Quantitative Filling Machine Weighing Auto Liquid Filling Machine Equipment 100-250Kg

    8, The complete electronic control system of equipment uniformly adopts the French Schneider configuration, with good compatibility and low energy consumption, thus ensuring the stability and reliability of the equipment. Compared with the various miscellaneous cards adopted by other manufacturers, French Schneider's European control system has more advantages in the protection level, stable reliability, safety level, service life, especially the subsequent upgrades.

    Quantitative Filling Machine Weighing Auto Liquid Filling Machine Equipment 100-250Kg

    Main configuration of the equipment:


    No ial

    First name "Said that."


    Brand name

    1Weing system

    METTLER TOLEDO.

    Mettler-Toledo

    2

    Programmable controller

    CPU.

    Schneider.

    Schneider

    3Touch-screen

    Schneider.

    Schneider

    4Converconverter

    Schneider.

    Schneider

    5Count photoelectric

    SICK.

    Schker

    6Close proximity switch

    LEUZE.

    Labor measurement

    7Pressure switchSMC.
    8CylinderAirTAC Yadecke
    9Solenoid valve

    FTEC.

    Eptai

    10Button

    Schneider.

    Schneider

    11Warning lamp

    Schneider.

    Schneider

    12Circuit breaker

    Schneider.

    Schneider
