1000ml 1800 BPH Chemical Liquid Filling Machine Horizontal Corrosive Liquid Filling Machine

    Buy cheap 1000ml 1800 BPH Chemical Liquid Filling Machine Horizontal Corrosive Liquid Filling Machine from wholesalers

    Buy cheap 1000ml 1800 BPH Chemical Liquid Filling Machine Horizontal Corrosive Liquid Filling Machine from wholesalers
    • Buy cheap 1000ml 1800 BPH Chemical Liquid Filling Machine Horizontal Corrosive Liquid Filling Machine from wholesalers
    • Buy cheap 1000ml 1800 BPH Chemical Liquid Filling Machine Horizontal Corrosive Liquid Filling Machine from wholesalers

    1000ml 1800 BPH Chemical Liquid Filling Machine Horizontal Corrosive Liquid Filling Machine

    Ask Lasest Price
    Brand Name : JWIM
    Model Number : CPD-12E
    Certification : CE,ISO
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 1 set per month
    Delivery Time : 15-90 work days
    • Product Details
    • Company Profile

    1000ml 1800 BPH Chemical Liquid Filling Machine Horizontal Corrosive Liquid Filling Machine

    12 Nozzles Microcomputer Horizontal Corrosive Liquid Filling Machine with 1800 BPH Speed


    Introduction of 12 nozzles corrosive liquid filling machine


    CDP-12E corrosive liquid filling machine is suitable for the filling of materials with better fluidity. The whole machine is of in-line structure, adopting the metering filling principle. The whole machine is easy to operate.


    Parameters of 12 nozzles corrosive liquid filling machine

    1Filling speed1000ml ≤1800 bottles/hour
    2Suitable bottle sizeRound bottle:Φ40-95mm bottle height 80-230mm
    3Accuracy±1g(50mL) ±3g(1000mL)(*water for example)
    4Feeding port height2560mm
    5Feeding port diameterΦ34mm
    6Air pressure0.6-0.8MPa
    7Power supply~380V 50Hz/0.7KW
    8Machine size2000×930×2620mm(L×W×H)
    9WeightAround 700Kg

    Features of 12 nozzles corrosive liquid filling machine

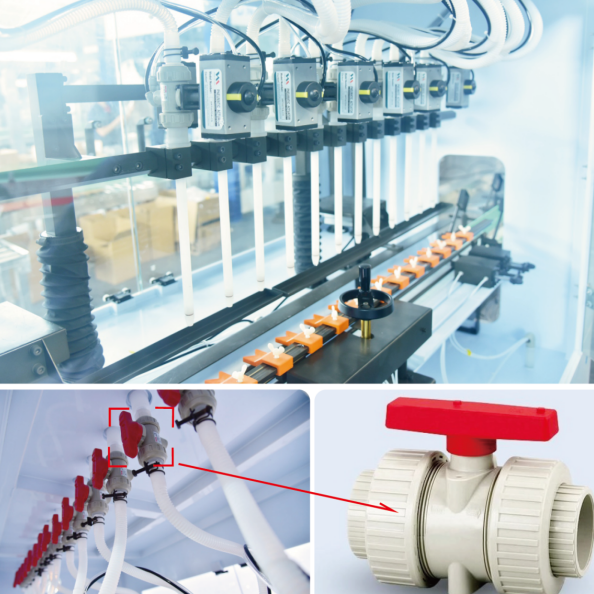

    1 The external frame of the whole machine, material box, feeding pipe, conveying frame, filling head, liquid level detection, valve, knife retaining fixed base, electrical box, etc. are made of anti-corrosion PP material, with good anti-corrosion performance.

    1000ml 1800 BPH Chemical Liquid Filling Machine Horizontal Corrosive Liquid Filling Machine


    2 The liquid tank, cylinder stopper, actuator transition part, filling head lifting part, photoelectric support, threading pipe and exhaust pipe are treated by spraying Teflon, with good anti-corrosion performance.


    1000ml 1800 BPH Chemical Liquid Filling Machine Horizontal Corrosive Liquid Filling Machine
