    8 Nozzles 100ml 3000BPH Liquid Pesticide Bottle Filling Machine High Viscosity Liquid Lubricating Oil Filling Line

    8 Nozzles 80-1000ml Bottle Pesticides Filling Machine Manufacturers 3000 Bottles Per Hour Speed

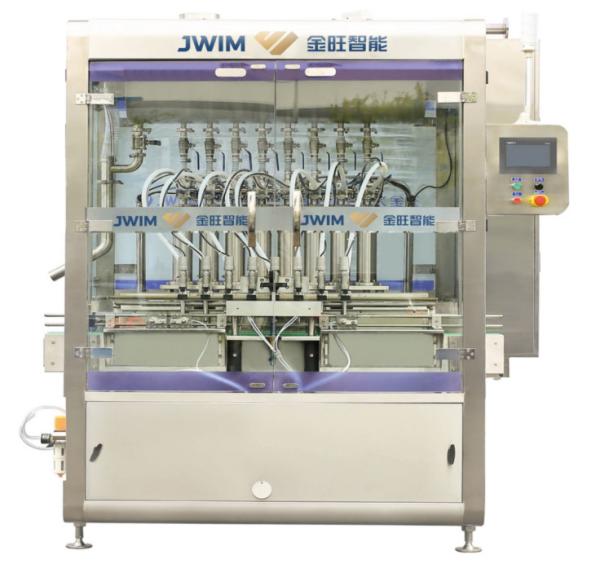

    1 Description of pesticide filling machine


    CCG1000-8TJ high viscosity pesticide filling machine is the latest generation. It is suitable for the packaging of various materials. The machine has horizontal structure. With PLC control and touch human-machine interface, the machine is very easy for worker to operate. Arc frame of this machine is generous. Dose adjustment is very fast.


    2 Parameters of filling machine


    1Filling speed

    100mL:≤3000 bottles/hour

    (*water as example)

    2Suitable bottleRound bottle:Φ40-95mm Height 80-230mm
    3Filling volume50-1000mL
    4Accuracy±1g(100mL)(*water as example)
    5Nozzle diameterΦ18mm
    6Minimum bottle opening size≥Φ22mm
    7Air pressure0.6-0.8MPa
    8Power supply~380V 50Hz/3.55KW
    9Machine size1995×1490×2470mm(L×W×H)
    10Machine weightAround 1200Kg

    3 Features of pesticide filling machine


    It adopts the cylinder removing structure, which can completely empty the materials in the cylinder, effectively avoid the cross contamination of the materials, and make the replacement of the sealing ring more convenient and quick.

    The filling nozzles can be quickly adjusted and equipped with scale mark. Adjustment does not need any tools. Pipes and sensors have name mark, that will be easy for repair.


    4 Application


    Widely used in pesticide and other industries 50-1000ml bottles of automatic filling.



    5 Company Introduction


    JIANGSU JINWANG INTELLIGENT SCI-TECH CO., LTD. was founded in 2005, which provides professional service in the agrochemical industry, aims to become the full case provider for the intelligent agrochemical formulation workshop. The corporation’s current registered capital is 20 million, the existing staff of more than 400 people, and all kinds of professional and technical personnel nearly 200.

    8 Nozzles 100ml 3000BPH Liquid Pesticide Bottle Filling Machine High Viscosity Liquid Lubricating Oil Filling Line


    6 FAQ


    Q: If equipments has problems during running, how will you solve the problems quickly?A: After getting customer’s problems, our engineer will analyze it through pictures or videos, if it is some small problems, we will guide customer how to solve the problem by video call or send some guiding pictures; if there’s some parts breakdown, we will send the spare parts to customer immediately; if there’s some problems customer can not solve and ask our engineer to site to check, our engineer will start off after getting the flight tickets from customer.
    Q:Machine Package?A:Each Machine will be sprayed antirust oil, wrapped by PO film for protection, and will be packed to the standard fumigation free wooden cases.
