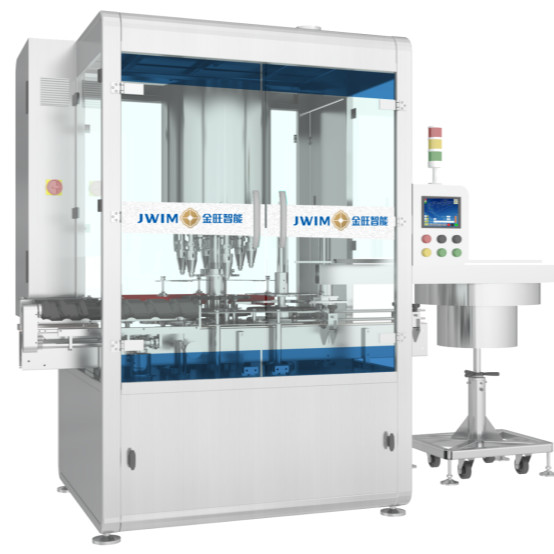

8000 BPH YG-8AS Full Automatic Rotary Capping Machine 80ml-1000ml With 8 Heads

    Buy cheap 8000 BPH YG-8AS Full Automatic Rotary Capping Machine 80ml-1000ml With 8 Heads from wholesalers

    Buy cheap 8000 BPH YG-8AS Full Automatic Rotary Capping Machine 80ml-1000ml With 8 Heads from wholesalers
    • Buy cheap 8000 BPH YG-8AS Full Automatic Rotary Capping Machine 80ml-1000ml With 8 Heads from wholesalers
    • Buy cheap 8000 BPH YG-8AS Full Automatic Rotary Capping Machine 80ml-1000ml With 8 Heads from wholesalers
    • Buy cheap 8000 BPH YG-8AS Full Automatic Rotary Capping Machine 80ml-1000ml With 8 Heads from wholesalers
    • Buy cheap 8000 BPH YG-8AS Full Automatic Rotary Capping Machine 80ml-1000ml With 8 Heads from wholesalers

    8000 BPH YG-8AS Full Automatic Rotary Capping Machine 80ml-1000ml With 8 Heads

    Ask Lasest Price
    Brand Name : JWIM
    Model Number : YG-8AS
    Certification : CE,ISO
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1 set per month
    Delivery Time : 50 working days
    • Product Details
    • Company Profile

    8000 BPH YG-8AS Full Automatic Rotary Capping Machine 80ml-1000ml With 8 Heads

    8000 BPH YG-8AS Full Automatic Rotary Capping Machine 80ml-1000ml With 8 Heads


    Brief Introduction of 8000 BPH YG-8AS Full Automatic Rotary Capping Machine 80ml-1000ml With 8 Heads


    The machine is suitable for automatic pressing of various inner plugs of various specifications of glass or plastic bottles. The whole machine is of rotary structure. The vacuum suction nozzle is used to suck various internal plugs transmitted from the scraper plate, and the internal plug is pressed in the process of bottle rotation.

    The whole machine adopts PLC control and touch man-machine interface, which is convenient and intuitive to operate.


    Technical Parameters of YG-8AS Full Automatic Rotary Capping Machine

    1Capacity

    ≤8000 bottles/hour

    *The actual production capacity varies according to the product size and packaging material.

    2Qualified Rate≥99.8%
    3Suitable Bottle SizeΦ40-95mm height 80-250mm
    4Cap SizeΦ20-70mm,cap height 20-40mm
    5Capping Head8
    6Air Pressure0.6~0.8MPa
    7Power Supply~380V 50Hz
    8Power4.0KW
    9Machine Weight1600Kg
    10Machine Size1995×1445×2344mm(L×W×H)

    Electrical configuration of FX-6AH Automatic Capping Machine


    S/NNameBrand
    1PLCSchneider
    2Touch screenSchneider
    3Frequency converterSchneider
    4Counting sensorSICK
    5Proximity switchSchneider
    6CylinderFTEC
    Product Details of YG-8AS Full Automatic Rotary Capping Machine

    1. Good effect, Real time presentation of the operation status (data) of the whole line. The high-speed railway has high appearance grade and high visibility.

    8000 BPH YG-8AS Full Automatic Rotary Capping Machine 80ml-1000ml With 8 Heads


    2. Digitization,In order for the production manager to master the production data and operation of the equipment in time, the equipment is equipped with three-color light strips, green means machine running, blue means machine standby and red means alarm.

    3. Quick loading mold design, no tools are required for mold replacement.

    8000 BPH YG-8AS Full Automatic Rotary Capping Machine 80ml-1000ml With 8 Heads


    FAQ
    Frequently asked questions


    Q1: Are you a factory or trading company?
    A1: We are a factory specialized in Agrochemical,
    fertilizer, food, veterinary medicine whole production line. Such as, Liquid Filling Machine Paste Filling Machine , automatic capping machine ,semi-automatic capping machine,automatic labeling Machine and semi-automatic machine ,coding machine and other packaging mahcine.filling and other packing machines.

    Q2: Where is your factory location? How can I visit there?
    A2: Our factory is located in Changzhou, China. You could visit us by high speed train or by plane.


    Q3: How does your factory do regarding quality control?
    A3: Quality is priority. People from Youlian always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment Our factory has gained CE authentication
