    7000BPH Big Drum Automatic Intelligent Self Adhesive TN-200LD Sticker Labeling Machine

    7000BPH Big-Drum Automatic Sticker Labeling Machine Intelligent Self-Adhesive

    1. Introduction of Labeler

    TN-200LD drum double-sided self-adhesive labeling machine adopts programmable control, touch man-machine interface and servo driven labeling. The whole machine is easy and intuitive to operate, and has rich help functions and fault display functions.It is suitable for automatic labeling of self-adhesive labels of various square flat drums.


    2. Technical Parameters of Intelligent Self-adhesive Labeling Machine

    1

    Labeling Speed

    50ml:7000 bottles/hour,500ml:5000 bottles/hour,

    1000ml:4000 bottles/hour

    *The actual production capacity varies according to the product size and packaging material.

    2Applicable Bottle DiameterΦ30-95mm
    3Label SizeHeight:20-180mm length:50-320mm
    4Accuracy±1mm *The labeling accuracy varies according to different materials and label materials
    5Label Roll

    Inside diameter of label roll Φ76.2mm

    maximum label roll outer diameter Φ340mm

    The width of label bottom paper is 16~200mm

    6Power Supply~220V 50Hz/2.2KW
    7Machine Size

    1960×1260×1740mm(L×W×H)

    8Machine Weight

    About 350Kg


    3. Electrical Configurations of Labeling Machine

    S/NNameBrand
    1PLCSchneider
    2Applicable Bottle DiameterSchneider
    3Label SizeSchneider
    4AccuracySchneider
    5Label RollSick
    6Power SupplySchneider

    4. Advantages of TN-200LD Labeling Machine


    High Precision


    The servo motor drives the labeling mechanism to ensure the high precision of labeling.

    Stability


    The label feeder is constructed of driven roller, which adopts wear-resistant rubber. Its excellent friction ensures the long-term stability of the label sending function.

    Universality


    The center sleeve seat of the label disc is fixed by two layers,and made of soft polyurethane.
    High productivityBottle dividing and shaping mechanism + dislocation labeling to improve labeling stability and facilitate adjustment

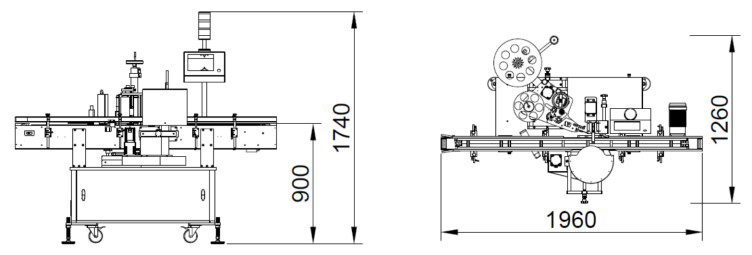

    5. Machine Dimension

    7000BPH Big Drum Automatic Intelligent Self Adhesive TN-200LD Sticker Labeling Machine
