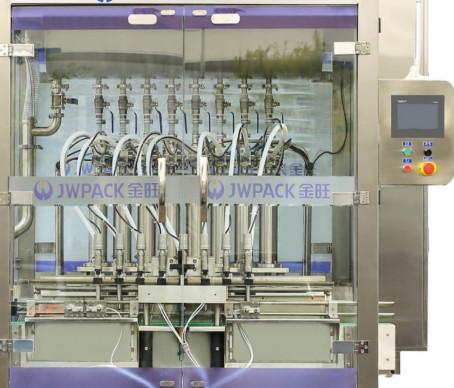

    304 Stainless Steel Essential Oil Pesticide Liquid Filling Machine For Bottle 1 Liter 1500BPH

    Ask Lasest Price
    Brand Name : JINWANG
    Model Number : CCG1000-8Ex
    Certification : CE, ISO,GMP
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 1 set per month
    Delivery Time : 15-90 work days
    • Product Details
    • Company Profile

    304 Stainless Steel Essential Oil Pesticide Liquid Filling Machine For Bottle 1 Liter 1500BPH

    Explosion-proof 50-1000ml Pesticide Filling Machine 1500BPH for 1L bottle SS304


    Explosion-proof Pesticide filling line features:


    1Less laborIntelligent Production LineReduce personnel intervention and labor intensity
    2Easy to use and fast to switchHandle adjustmentReduce Tool Use and Adjustment Time
    Calibration markingSpecification adjustment has reference, once in place
    3High quality and high appearanceRotary cappingHigh qualified rate and good sealing
    4Safety, Environmental Protection and VisibilitySafety equipmentExplosion-proof type for transmission protection, electrical protection and filling and capping
    Environmental protection equipmentStainless steel environmental protection cover, air intake, liquid tray, etc.
    Strong visibilityIntelligent Production Line, High-end Upgrade

    Explosion-proof Pesticide filling machine parameters:


    1Filling Capacity

    100mL:≤2800 bottles/hour 500mL:≤1900 bottles/hour

    1000mL:≤1500 bottles/hour *Filling water, (capacity is related to different products)

    2Applicable Bottle Size

    Round bottle:Φ40-95mm H 80-230mm

    Square bottle:L40-95mm W40-95mm H80-230mm

    3Filling range,filling nozzles80-1000mL 8 nozzles
    4Accuracy±1g(100mL) ±2g(1000mL)(*water)
    5Height of Feeding Port2300mm
    6Feeding Port DiameterDn40
    7Nozzle DiameterΦ18mm
    8Minimum Bottle Opening≥Φ22mm
    9Air Pressure0.6-0.8MPa
    10Power Source~380V 60Hz/3.55KW
    11Machine size1995×1490×2470mm(L×W×H)
    12Machine Weight1200Kg
    Explosion-proof Pesticide filling machine Introduction

    The equipment uses explosion-proof cabinet, contains PLC, touch screen, frequency converter, switching power supply and other components inside. The exterior uses motor, photoelectric, solenoid valves and explosion-proof junction boxes.

    304 Stainless Steel Essential Oil Pesticide Liquid Filling Machine For Bottle 1 Liter 1500BPH

    Explosion-proof motor Explosion-proof cabinet


    304 Stainless Steel Essential Oil Pesticide Liquid Filling Machine For Bottle 1 Liter 1500BPH

    Explosion-proof coiling tube


    Why do you choose Jinwang?


    • Select spare parts with high quality and well-known brands only.

    • We are approved by ISO, CE, GMP.

    • One year warranty; perfect after-sales service for spare parts.

    • Best prices with good quality and reliable performance, easy maintenance.

    • Increased foreign trade exports 30% every year.

    304 Stainless Steel Essential Oil Pesticide Liquid Filling Machine For Bottle 1 Liter 1500BPH
