    Monoblock Pesticide Filling Machine 16 Nozzles 12 Capping Heads 10000 BPH 50ml

    Ask Lasest Price
    Brand Name : JWIM
    Model Number : GX-16-12TS
    Certification : CE,ISO
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1 set per month
    Delivery Time : 50 working days
    • Product Details
    • Company Profile

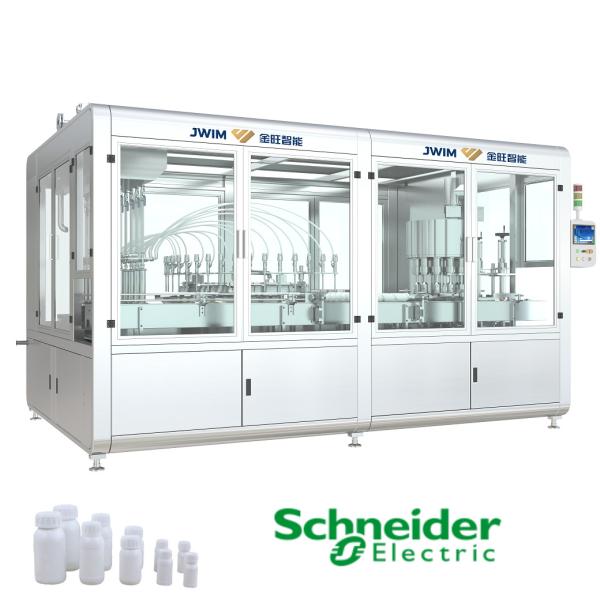

    Monoblock Pesticide Filling Machine 16 Nozzles 12 Capping Heads 10000 BPH 50ml

    16 Nozzles 12 Capping Heads Filling Capping Monoblock Pesticide Filling Machine 10000 BPH for 50ml With 1g Accuracy


    1 Introduction of GX-16-12TS Filling Capping Monoblock Pesticide Filling Machine


    GX-16-12TS High Speed Follow Type Monoblock Pesticide Filling Machine utilizes SUS304 frame with outstanding corrosion resistance. Filling is driven by servo electric motor and also volume metering, which recognizes high accuracy of filling dose.

    The vital parts of mechanical transmission has defense switch, if there is any kind of uncommon situation during running, the equipment will automatically stop as well as alarm, to shield the tools from damages as well as boost the life span.


    2 Parameters of GX-16-12TS Pesticide Filling Machine


    1Capacity

    50ml: ≤10000 BPH

    2Applicable BottleΦ20-60mm Height:50-150m
    3Filling Range30-100ml
    4Filling Precision

    ±1g

    5Air Pressure0.6-0.8MPa
    6Power Source~380V 50Hz/6KW
    7Weight3000Kg
    8External Dimension4020×2763×2760mm(L×W×H)

    3 Some configurations of GX-16-12TS Monoblock Pesticide Filling Machine


    No.NameBrand
    1PLCSchneider
    2HMISchneider
    3InverterSchneider
    4Servo SystemSchneider
    5Proximity SwitchSchneider

    4 Features of GX-16-12TS Pesticide Filling Machine


    High Speed: 10000 bottles per hour for 50ml bottle type, one filling line can do better than 2 filling lines.


    Quick Changeover design, Specification change without using any tools. Molds are marked according to different bottle specification. It makes the changeover easier.


    High Precision: pistons make sure the high precision of small volume.


    The control system uses France Schneider Configuration, the integrated control system is stable, safe, green and low energy consumption.

    Monoblock Pesticide Filling Machine 16 Nozzles 12 Capping Heads 10000 BPH 50ml


    5 FAQ


    Q:Machine Package?
    A:Each Machine will be sprayed with antirust oil, wrapped by PO film for protection, and will be packed into the standard fumigation-free wooden cases.
    Q: Training system?
    Our training includes multiple functional courses such as functional structure principles, process procedures, commissioning, repair, and maintenance.

    Quality Monoblock Pesticide Filling Machine 16 Nozzles 12 Capping Heads 10000 BPH 50ml for sale
