    1-5L Automatic Piston Filling Machine 6 Heads 1200BPH Packing Machine

    1-5L Automatic Piston Filling Machine 6 heads 1200BPH Packing Machine

    1. Introduction

    CCG5000-6TS Automatic Piston Filling Machine is suitable for the packaging of various water agents and high viscosity products. The whole machine is in-line structure, driven by servo motor and volume metering filling principle, which realizes high precision of filling dosage. It adopts PLC control, human-machine interface, and the whole machine is easy to operate.

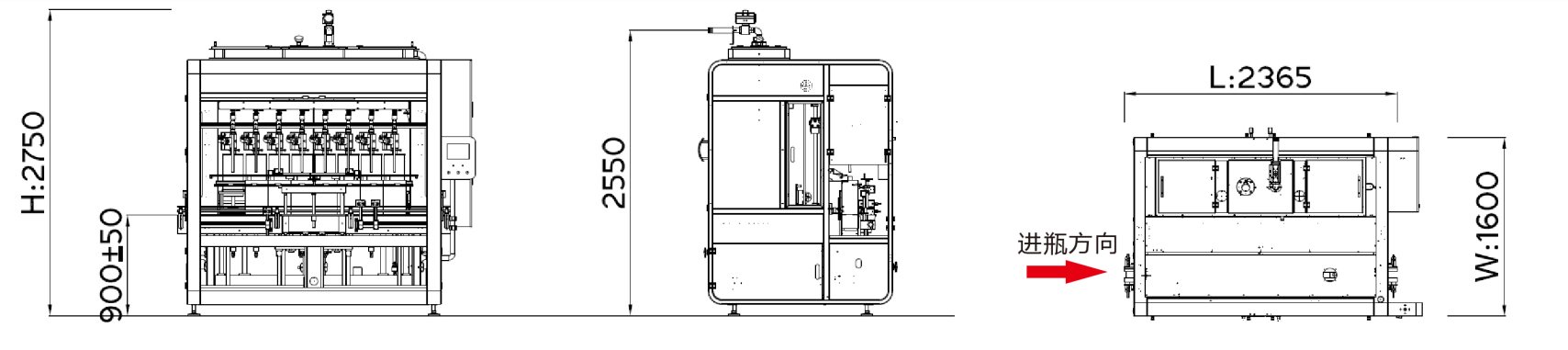

    2. Machine Dimension of Filling Machine



    3. Technical Parameters of CCG5000-6TS Automatic Piston Filling Machine


    1Capacity

    1000ml: ≤1200 BPH 5000ml:≤600 BPH

    Capacity differs from product, drum and product characteristic

    2Applicable Bottle Size

    Round Bottle

    Φ80-140mm Height:140-340mm

    Flat/Square Bottle

    L: 80-200mm W: 80-140mm H: 140-340mm

    3Filling Volume1000ml-5000ml
    4Filling Precision

    ±0.2%

    Precision differs from product, drum and product characteristic

    5Product Feeding Height2550mm
    6Product Feeding DiameterDN40
    7Filling Nozzle DiameterΦ26mm
    8Min Opening Diameter≥Φ30mm
    9Air Pressure0.6-0.8MPa
    10Power Source~380V 50Hz/2.2KW
    11External Dimension2365×1600×2750mm(L×W×H)
    12WeightAbout 2100kg

    4. Allocations

    No.NameBrand
    1PLCSchneider
    2HMISchneider
    3InverterSchneider
    4Servo SystemSchneider
    5Counting SensorSICK
    6Proximity SwitchSchneider
    7Power SwitchSchneider
    8Pressure GaugeSMC
    9CylinderFTEC
    10Solenoid ValveFTEC
    11ButtonSchneider
    12Alarm LightSchneider
    13Circuit BreakerSchneider

    5. Features of 1-5L Automatic Piston Filling Machine

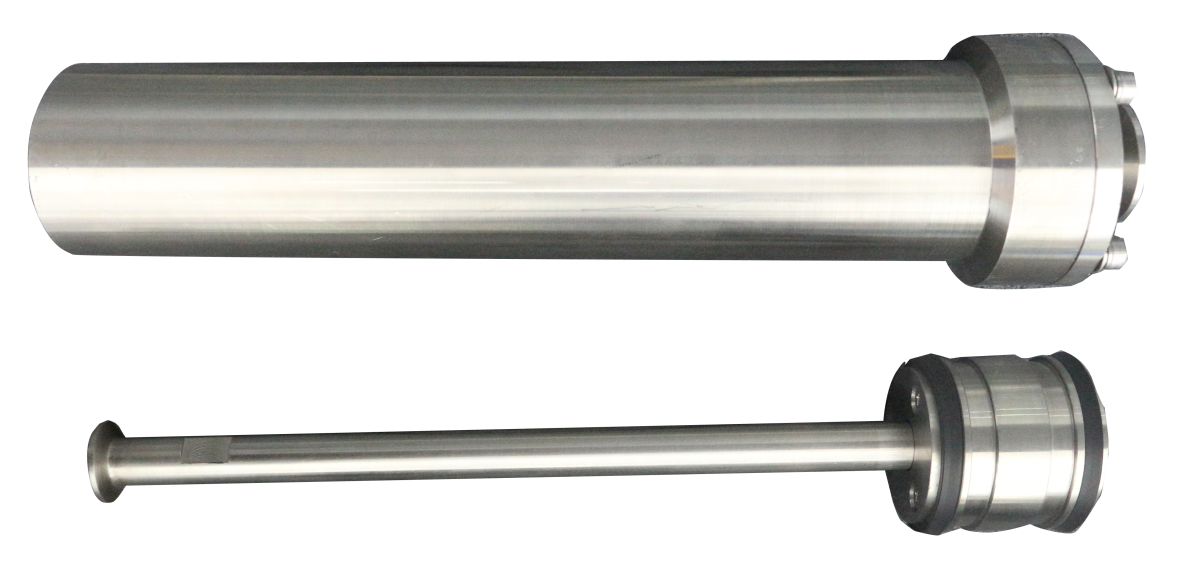

    a) The filling unit uses an off-cylinder structure, it can completely discharge the product in the tank, effectively avoiding cross-contamination, and making the replacement of the sealing ring easier.

    b) CCG5000-6TS Automatic Piston Filling Machine uses PLC control, synchronous belt driven by servo motor, stable double lead screw lifting structure to make sure the high precision of piston movement and filling.­­­

    c) The filling nozzles go up and down by electric machinery. The height of the filling nozzle can be adjusted on the touch screen. Foam can be avoided during filling.

    d) The latest PTFE sealing parts improves the wear resistance and service life, reducing the maintenance cost.

    e) The filling head with integral casting has good formability and longer service life.
