PLC Automatic Sticker Labeling Machine Intelligent Self adhesive 7000 BPH

    Buy cheap PLC Automatic Sticker Labeling Machine Intelligent Self adhesive 7000 BPH from wholesalers

    Buy cheap PLC Automatic Sticker Labeling Machine Intelligent Self adhesive 7000 BPH from wholesalers
    • Buy cheap PLC Automatic Sticker Labeling Machine Intelligent Self adhesive 7000 BPH from wholesalers
    • Buy cheap PLC Automatic Sticker Labeling Machine Intelligent Self adhesive 7000 BPH from wholesalers

    PLC Automatic Sticker Labeling Machine Intelligent Self adhesive 7000 BPH

    Ask Lasest Price
    Brand Name : Jinwang
    Model Number : TN-150
    Certification : CE, ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 1 set per month
    Delivery Time : 15-90 Working Days
    • Product Details
    • Company Profile

    PLC Automatic Sticker Labeling Machine Intelligent Self adhesive 7000 BPH

    7000 BPH Automatic Sticker Labeling Machine Intelligent Self-adhesive


    1. Introduction of TN-150 Labeling Machine


    This machine is suitable for the high requirement of the label’s position and has a fixed position for labeling. The whole machine is made of stainless steel, which reaches GMP standard. And the machine adopts programmable control, a touch man-machine interface, and a servo motor. It is suitable for automatic labeling of self-adhesive labels of various circular containers.


    2. Technical parameters of Intelligent Self-adhesive Labeling Machine


    1Labeling speed

    ≤7000 bottles/hour

    *The actual production capacity varies according to the product size and packaging material.

    2Applicable bottle diameterΦ30-95mm
    3Label height40-140mm
    4Label length50-280mm
    5Accuracy±1.5mm *The labeling accuracy varies according to different materials and label materials
    6Label roll

    Inside diameter of label rollΦ76.2mm

    Maximum outside diameter of label rollΦ340mm

    Label bottom paper width16~200mm

    7Power supply~220V 50Hz/1.5KW
    8Machine size2200×1200×1347mm(L×W×H)
    9Machine weightAround 380Kg

    3. Electrical Configurations


    S/NNameBrand
    1PLCInovance
    2Touch screenInovance
    3Frequency converterInovance
    4Servo motorESTUN
    5Switching mode power supplySchneider
    6BreakerSchneider

    4. Features of Labeling Machine



    High Precision


    The servo motor drives the labeling mechanism to ensure the high precision of labeling.
    The single bottle dividing wheel structure is adopted to make the spacing of bottles to be labeled more accurate.

    Stability


    The label feeder is constructed of the driven roller, which adopts wear-resistant rubber. Its excellent friction ensures the long-term stability of the label sending function.

    Universality

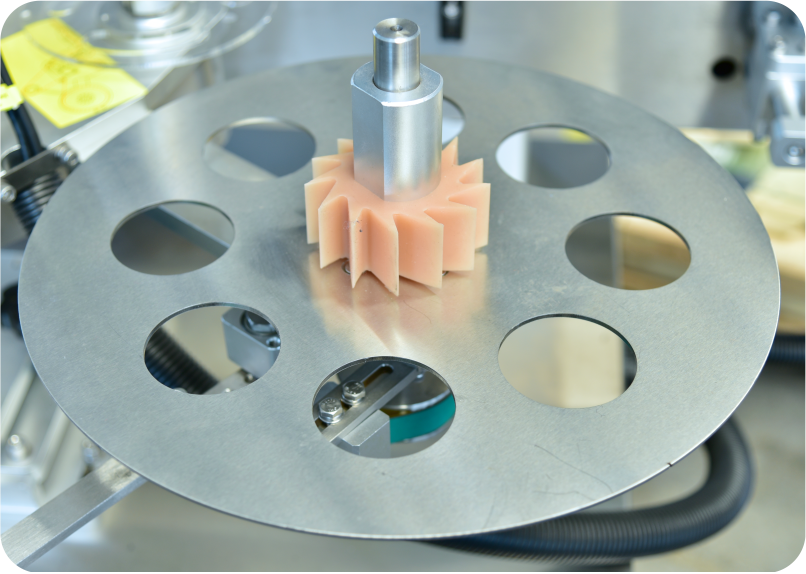

    The center sleeve seat of the label disc is fixed by two layers, and made of soft polyurethane.
