TZ-100D-type paper adhesive marking machine

I. Overview

TZ-100D paper adhesive labeling machine is suitable for continuous paper labels of cylindrical containers, such as round glass bottles, plastic bottles, polyester bottles, etc., which can automatically mark, glue and paste the label, under the control of the detector.

II. Equipment characteristics

2.1. Unique designed glue dispenser is simple and convenient when adding glue.

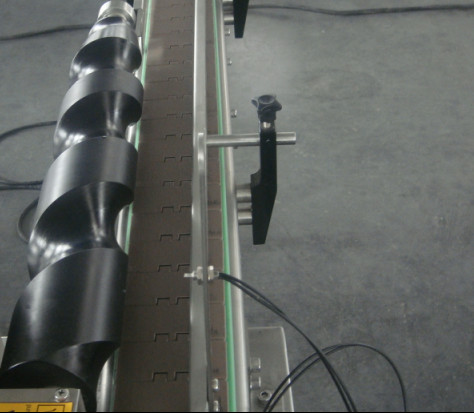

2.2. The screw is bottled and added into the bottle testing device to realize the function of not marking without bottle.

2.3. Box installation and exhaust window can effectively reduce the heat generated by the motor operation, improve the efficiency, and prolong the service life.

2.4. Simple and reliable structure setting, simple and convenient to replace the specifications.

III. Main technical parameters

1, applicable bottle type: Φ30-95mm diameter

2, marking speed: ≤ 100 bottles / min

3, marking accuracy: ± 1 mm (mm)

4, Post Length: 50-280 mm (mm)

5, Mapping Height: 40-150 mm (mm)

6, power supply: ~380 V, 50 Hz

Total power: 1.2 kW

8, Overall Dimensions: 2500 × 1000 × 1200 (L × W × H) mm

9, complete weight: approximately 700 kg

IV. Equipment configuration table
