    30 Pouches/Min Automatic Horizontal Pouch Packing Machine High Precision

    Ask Lasest Price
    Brand Name : Jinwang
    Model Number : DGD-280AJ
    Certification : CE, ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 1 set per month
    Delivery Time : 15-90 Working Days
    • Product Details
    • Company Profile

    30 Pouches/Min Automatic Horizontal Pouch Packing Machine High Precision

    30 pouches/minute Automatic Horizontal Pouch Packing Machine High-precision

    1. Introduction

    DGD-280AJ Automatic Horizontal Pouch Packing Machine is our newly developed online weighing bagging machine. Under the programmable control of the PLC, the function of bag removal → bag opening → detection → filling → sealing → finished product is realized.

    It adopts a SUS304 arc-shaped frame and tempered glass door cover, with a complete dust removal system, which is suitable for packaging production of various prefabricated bag products.

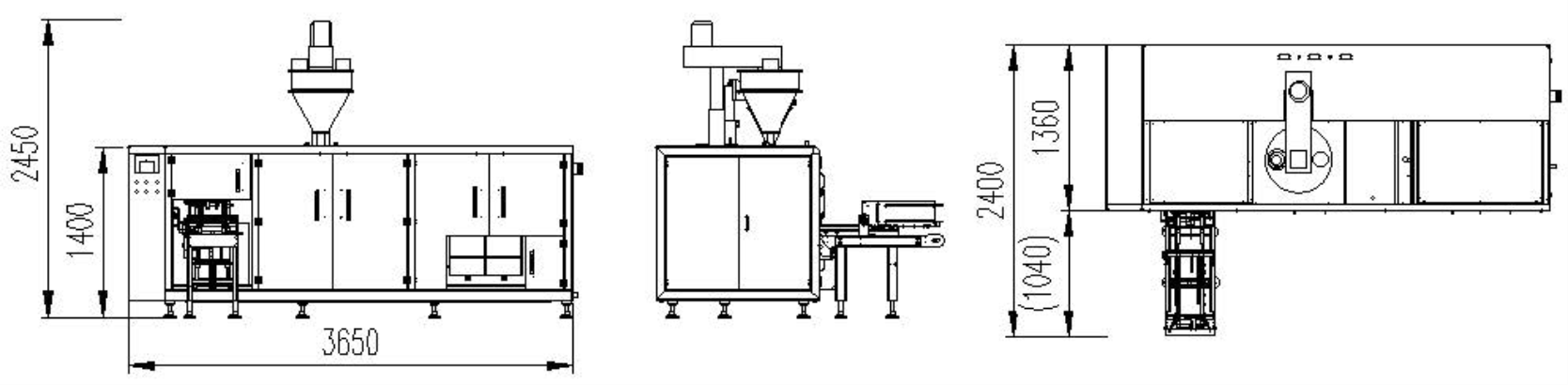

    2. Dimension

    Linear Measure: mm


    3. Technical Parameters of Pouch Packing Machine

    1Capacity20-40 Pouches/Min
    2Applicable Pouches Size

    W120-280mm

    L180-380mm

    3Volume≤1000g
    4Precision±1-2%
    5Air pressure0.6-0.8MPa 500L/MIN
    6Power supply~380V 50Hz/6.0KW
    7External Dimension3650×2400×1400mm(L×W×H)
    8WeightAbout 3100Kg

    4. Electrical Configurations of DGD-280AJ Automatic Horizontal Pouch Packing Machine


    NO.NameBrand
    1PLCINOVANCE
    2Touch ScreenINOVANCE
    3Temperature ControllerDelta
    4Servo driver (Main shaft)INOVANCE
    5Servo system ( Main shaft)INOVANCE
    6MCBSchneider
    7RelaySchneider
    8Switching Power supplySchneider
    9AC ContactorINOVANCE
    10Pressure SwitchSMC
    11Photoelectric SensorSick
    12ButtonSchneider

    5. Advantages of Automatic Horizontal Pouch Packing Machine

    Easy to Clear

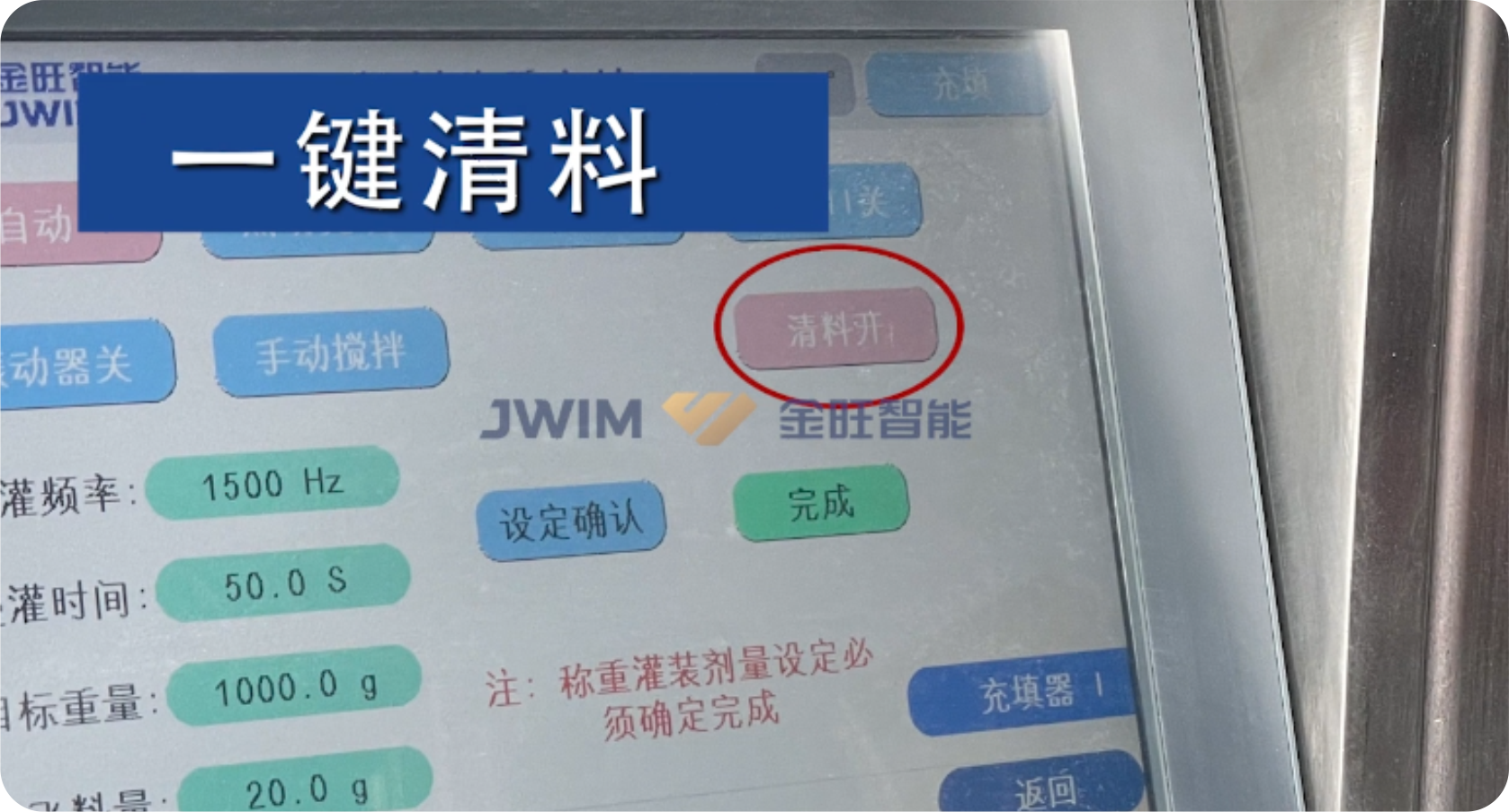

    A key to clear the material
    Flush directly
    Recycling of wastewater
    Easily-dismounting structure
    Arc frame, glass door cover

    Less Dust


    Partition of filling
    Bag opening inspection
    Diving filling
    Removal of dust on bag mouth

    Run Smoothly

    Servo driver
    Inner cam
    Vacuum pump
    Temperature control integrated module
