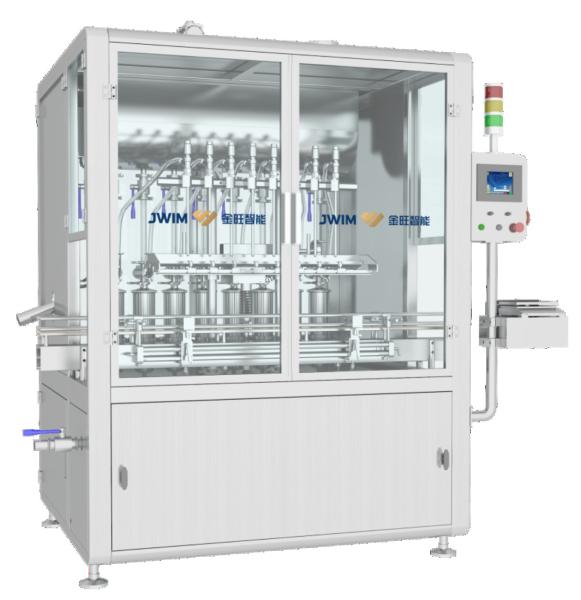

    50 Bpm Pesticide Filling Machine 50-1000mL 8 Nozzles Packing Machine

    Ask Lasest Price
    Brand Name : Jingwang
    Model Number : CCG1000-8AJ
    Certification : CE,CO,ISO
    Price : Negotiation
    Supply Ability : 1 set per month
    Delivery Time : 15-90 days
    • Product Details
    • Company Profile

    50 Bpm Pesticide Filling Machine 50-1000mL 8 Nozzles Packing Machine

    50 Bpm Pesticide Filling Line Machine 50-1000mL 8 Nozzles Packing Machine

    1. Introduction


    CCG5000-8AJ Automatic Linear Piston Filling Machine is an extremely flexible piston filler, capable of filling accurately and rapidly a wide variety of products from low viscosity liquids to a high viscosity paste or cream with or without chunks or particulates.


    2. Technical Parameters of CCG5000-8AJ Automatic Piston Filling Machine


    1Capacity

    100ml: ≤3000 BPH 500ml: ≤2000 BPH

    1000ml:≤1500 BPH

    Capacity differs from product, drum and product characteristic

    2Applicable Bottle Size

    Round Bottle: Φ40-95mm Height:80-230mm

    Flat/Square Bottle: L: 40-95mm W: 40-95mm H: 80-230mm

    3Filling Volume50-1000ml
    4Filling Precision

    ±1g (50-200ml) ±1.5g (200-500ml)

    ±2g (1000ml)

    Capacity differs from product, drum and product characteristic

    5Product Feeding Height2012mm
    6Product Feeding DiameterDN40
    7Filling Nozzle Diameter18mm
    8Min Opening Diameter≥Φ22mm
    9Air Pressure0.6-0.8MPa
    10Power Source~380V 50Hz/3.55KW
    11External Dimension1795×1240×2068mm (L×W×H)
    12WeightAbout 1000kg

    3. Features of 1-5L Automatic Piston Filling Machine


    a) It is widely used for the automatic filling from 80-1000ml in agrochemical, chemical, fertilizer, personal care products, oil and other related industries.

    50 Bpm Pesticide Filling Machine 50-1000mL 8 Nozzles Packing Machine


    b)The filling unit uses an off-cylinder structure, it can completely discharge the product in the tank, effectively avoiding the cross-contamination.


    c)Jinwang uses PLC control, servo motor drives the synchronous belt+stable operated double screw rod lifting structure to make sure the high precision of piston movement and filling.


    4. Pesticide Filling line Application Allocations


    No.NameBrandPicture
    1PLCSchneider
    2HMISchneider
    3InverterSchneider
    4Servo SystemSchneider
    5Counting SensorSICK
    6Proximity SwitchSchneider
    7Power SwitchSchneider
    8Pressure GaugeSMC
    9CylinderFTEC
    10Solenoid ValveFTEC
    11ButtonSchneider
    12Alarm LightSchneider50 Bpm Pesticide Filling Machine 50-1000mL 8 Nozzles Packing Machine
    13Circuit BreakerSchneider


    5. Why Choose Us?

    It is because our offer can meet your needs, and our machines can address your pain and our product is able to achieve your desired result and performance.
