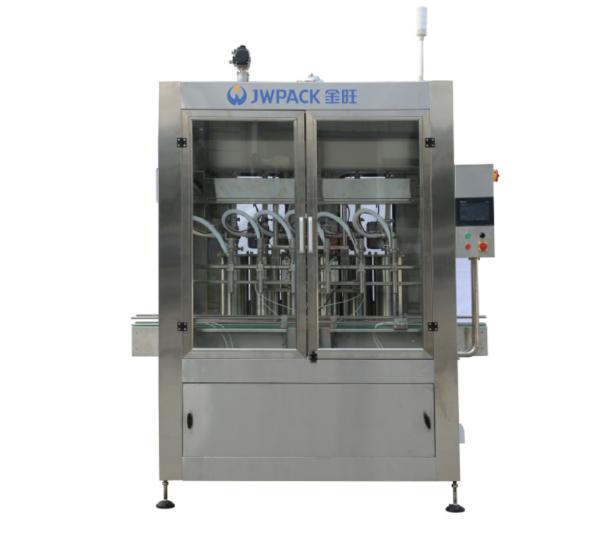

2000BHP 1000-5000ml CCG5000-8D Automatic Piston Filling Machine
1. Introduction:
CCG5000-8D Automatic High Viscosity Filling Machine is suitable for
filling of agrochemical water based products, EC, SC and high
viscosity products. The whole machine is linear structure and
driven by the servo motor. Volumetric filling principle can realize
the high precision of filling. It is controlled by the PLC, human
interface and easy operation.
2. Features:
2.1 The machine uses France Schneider components, central control system which is stable, safe and low
consumption of energy.
2.2 Schneider system and servo motor structure (PLC control, servo
motor drives the double transmission structure), this will make
sure the high and stable filling precision.
2.3 Relying on the piston filler developing experience and market
feedback, we develop the filling three way valve which is suitable
for agrochemical industry. The three way valves are with the
features of simple structure, stable operation and good sealing. No
leakage and save the maintenance cost. This is the exclusive patent
of JW PACK.
2.4 Casting SUS316L filling heads which can be used for a long
time.
3. Main Technical Parameters
3.1 Capacity: ≤2000 Bottles/hour (1L), ≤1000 Bottles/hour (5L),
3.2 Applicable Bottle Size: Round Bottle Diameter: 60-140mm,
Height: 140-340mm
Flat/square bottle: L: 80-200mm, W: 80-140mm, H: 140-340mm
3.3 Filling Volume: 1000-5000ml
3.4 Filling Precision: (1000ml) ±2g, (5000ml) ±5g
3.5 Material Feeding Height: 2345mm, Material Feeding Diameter:
40mm
3.6 External Dimension of filling head: 26mm, corresponding minimum
bottle diameter: ≥30mm
Filling Head Length: 184mm, Diving Distance: 100mm
3.7 Air Pressure: 0.6-0.8MPA
3.8 Power Source: 380V, 50HZ
3.9 Power: 2.5KW
3.10 Air Consumption: 200L/min
3.11 External Dimension: 2400×1100×2300mm (L*W*H)
3.12 Weight: 1500KG
4. Allocation
| NO. | Name | Brand | |
| 1 | PLC | Schneider | |
| 2 | Touch Screen | Schneider | |
| 3 | Inverter | Schneider | |
| 4 | Servo System | Schneider | |
| 5 | Sensor | Sick | |
| 6 | Proximity Switch | Schneider | |
| 7 | Power Switch | Schneider | |
| 8 | Pressure Switch | SMC | |
| 9 | Cylinder | F.Tec | |
| 10 | Solenoid Valve | F.Tec | |
| 11 | Button | Schneider | |
| 12 | Alarm Light | Schneider | |
| 13 | Circuit Breaker | Schneider | |
5. Our After-sales Service
a) Machine warranty of one year. Spare parts free of charge are
supplied within one warranty year (easily damaged parts and
man-made damage are exclusive). After a one-year warranty, we only
charge spare parts at cost price.
b) We will provide you with long-term support in technology. We
offer you an operation manual in English.
c) We can dispatch our engineer to your company for installing and
debugging machines.
d) You can also dispatch engineers to our company to inspect after
the production of machines is finished. We are responsible for the
training of t your engineers free of charge.
e) Remote Support. In light of the ongoing health risks surrounding
Covid-19, we have developed remote support procedures to keep our
customers’ orders and production progressing. We are completing
machine FAT via video conference call and undertaking remote
installations to get new machines up and running ASAP. Documents
can be screen-shared, and our teams can connect with your teams to
provide the relevant training.
