    CZ-6B Automatic Weight Filling Machine 5-30L with Mettler Toledo Weighing Scale

    Ask Lasest Price
    Brand Name : JWIM
    Model Number : CZ-6B
    Certification : CE, ISO9001
    Supply Ability : 3 sets/week
    Delivery Time : 20-30 Working Days
    • Product Details
    • Company Profile

    CZ-6B Automatic Weight Filling Machine 5-30L with Mettler Toledo Weighing Scale

    2

    CZ-6B Automatic Weight Filling Machine for 5-30L by Mettler Toledo Weighing Scale


    Introduction

    CZ-6B Automatic Weight Filling Machine is making up of the linear scale (with roller), chain-driven drum in and out structure, fast and slow filling (with dive function), material tank, weight control meter and PLC control unit. This filling machine can do the auto filling of different materials (with or without foam).


    Technical Parameters:

    1Capacity

    5L: 400-500 BBPH, 20L: 360BPH

    Capacity differs from product, drum and product characteristic

    2Applicable Bottle SizeMin: 200*140*320mm Max: 290*260*450mm (L*W*H)
    3Filling Volume5-30Kg
    4Filling Precision

    ±0.2%

    Precision differs from product, drum and product characteristic

    5Product Feeding Height2980mm
    6Product Feeding DiameterDN40
    7Air Pressure0.6-0.8MPa
    8Power Source~380V 50Hz/2.2KW
    9External Dimension2900×1363×3140mm(L×W×H)
    10WeightAbout 1250Kg

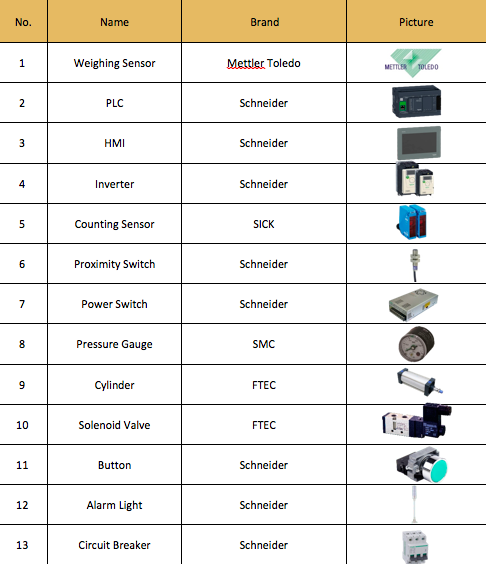

    Allocations:

    Features:

    1. High Precision: Adopts weight filling system (American METTLER TOLEDO weighing sensor and control meter) ensures that the high filling precision. Unique ball-to-go drums conveying method ensures smooth drum-out conveying after filling.

    2. The machine uses fast & slow filling valve, diving filling heads do under level filling which can avoid the foaming problem when filling.

    3. The control system uses France Schneider, the integrated control system is more stable, safe, green and low energy consumption.

    4. Liquid tray that controlled by individual cylinders is installed under the filling nozzles. The external placed PTFE plugs can make sure the drops will not leak out of the bottle after the filling head is closed.

    5. The whole machine uses the frame of Stainless Steel 304 that with perfect anti-corrosion effect. The stainless steel cover and the toughened glass door prevent the dirty air during filling from polluting the environment and easy for cleaning. The sealing material of scale and product contact parts is fluorine rubber.

    6. The machine has a material tank, equipped with level detection system, automatic coordination of feeding.
